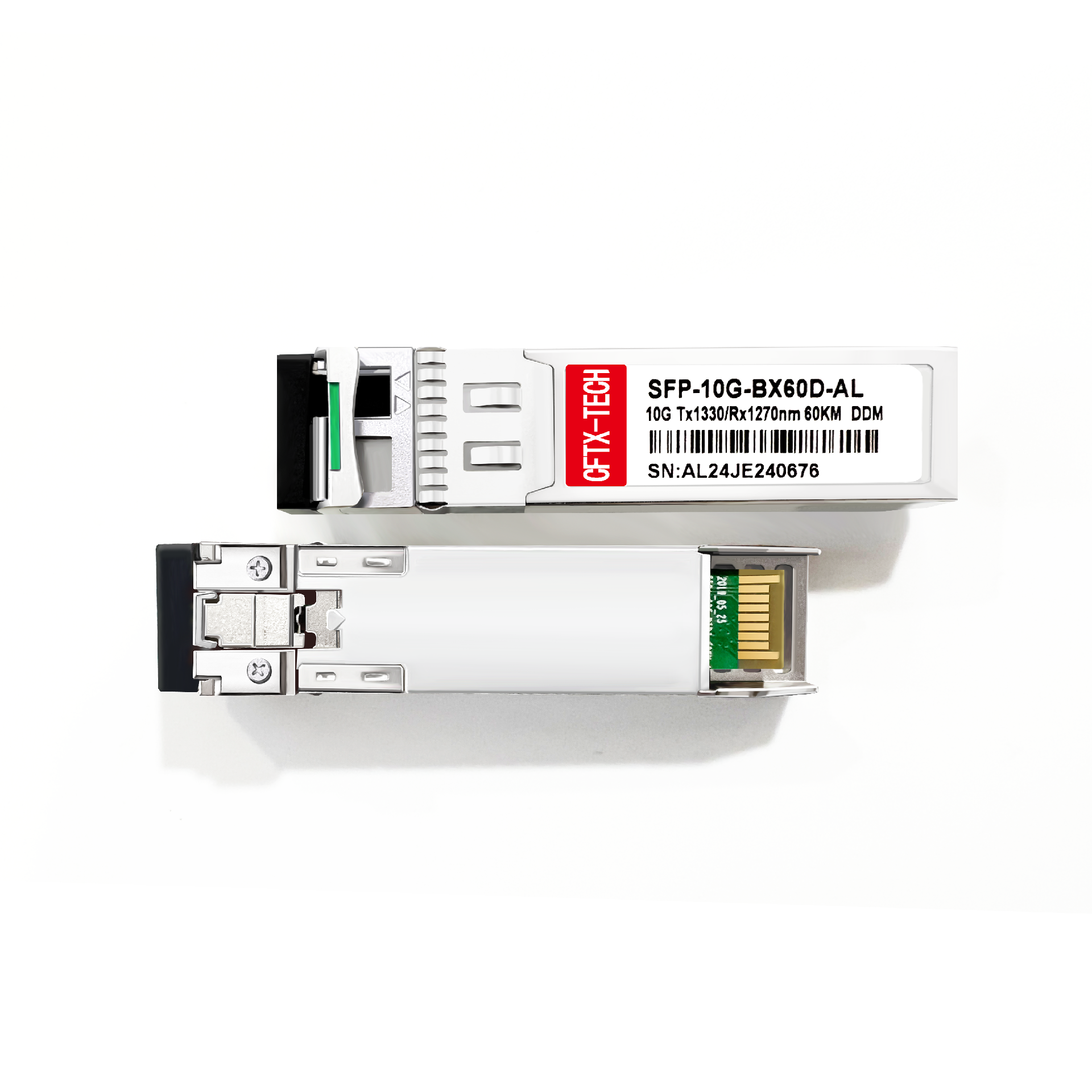

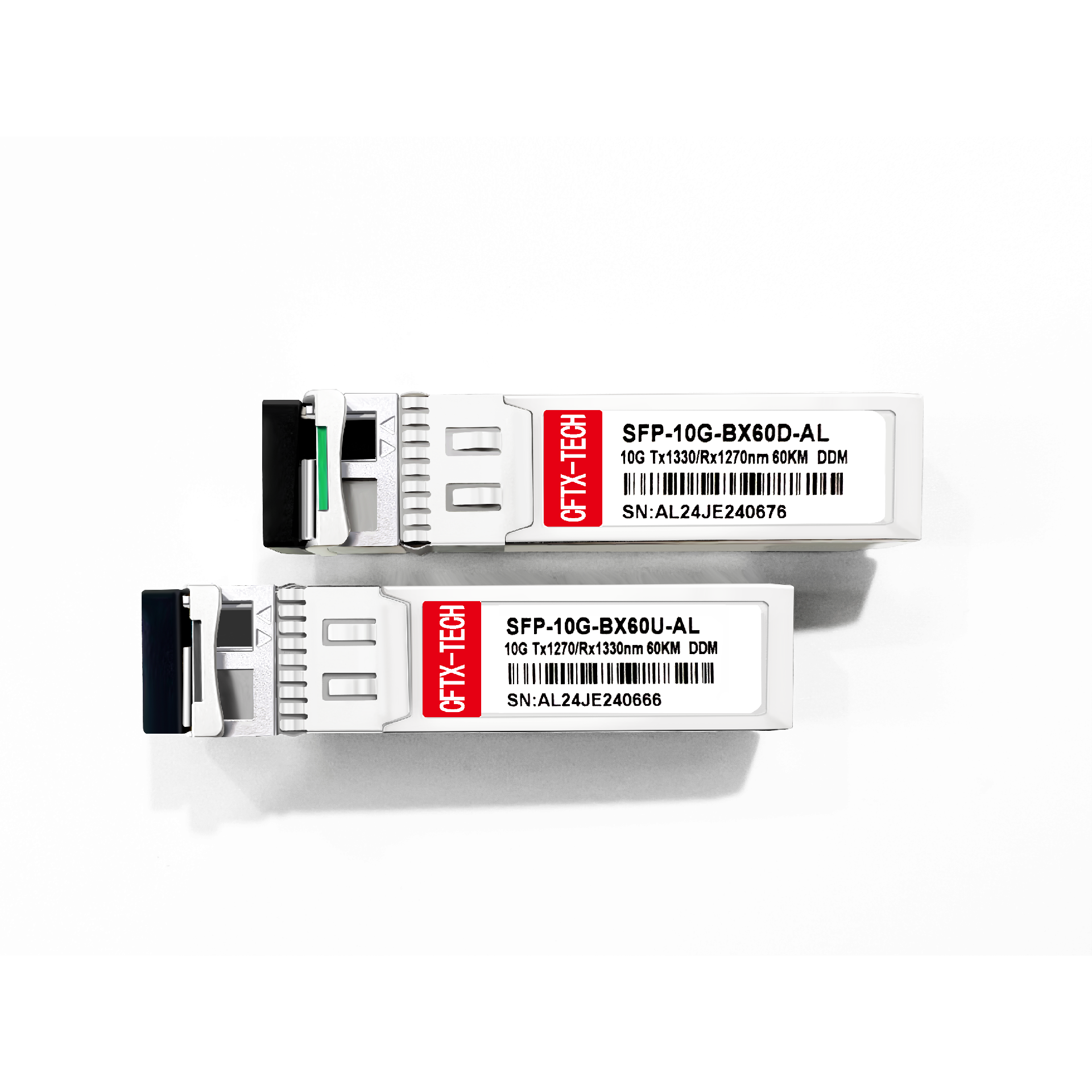

10G-SFP+BIDI-1270(1330)nm-60km

10.31Gb/s data transmission speed, DFB laser transmitter and APD photoelectric detector, 9/125 μ m single-mode fiber transmission up to 60km, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal housing for reducing electromagnetic interference, in line with ROSA lead-free standard, single +3.3V power supply, support digital diagnostic monitoring function, SFF-8472, 8431 protocol

产品详情
资料下载

Compatible Model Name	SFP-10G-BD-ZR	Vendor Name	CFTX
Form Factor	SFP	Data Rate	10.31Gbps
Wavelength	1270nm~1330nm	Max Transmission Distance	60km
Connector	Simple-LC	Media	Single mode-SMF
Transmitter power	0~-+5dBm	Receiver sensitivity	<-20dBm
DDM/DOM	Yes	Temperature Range	0~70°C（Commercial grade） /-40~85°C（Industrial grade）
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA	Laser Type	DFB
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
