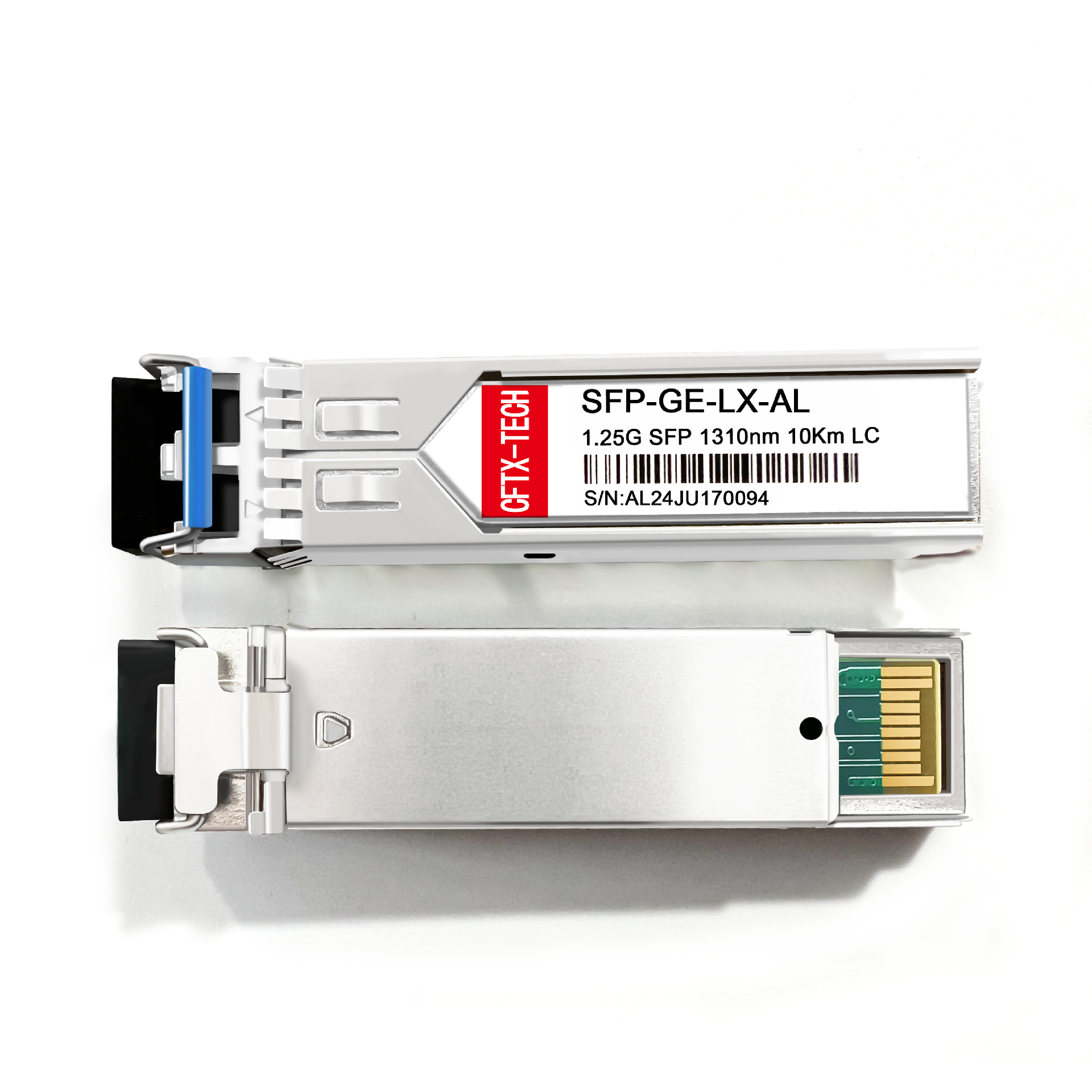

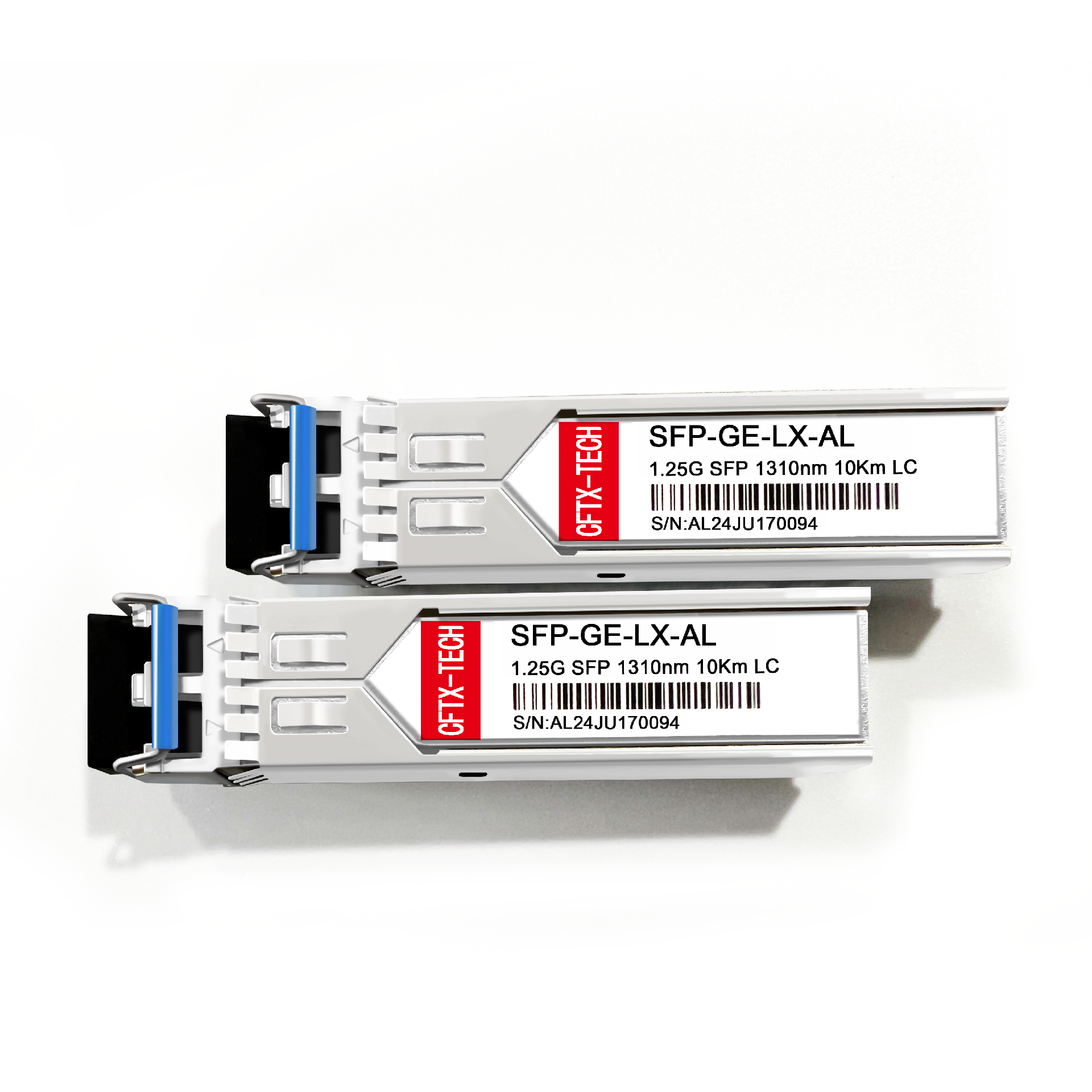

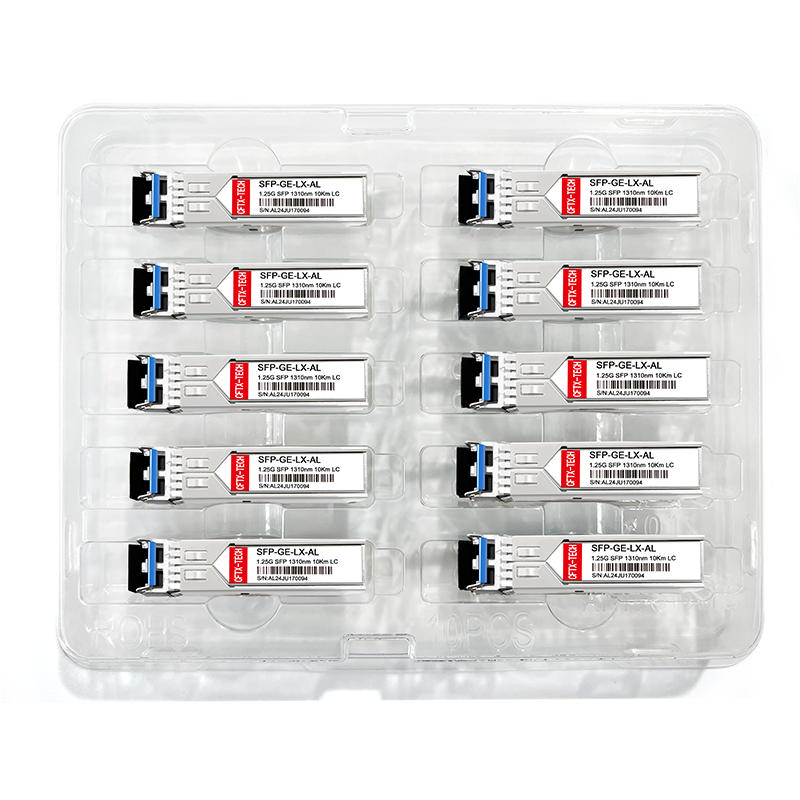

1.25G-SFP-LX-1310nm-10KM

1.25Gb/s data transmission speed, FP laser transmitter and PIN photoelectric detector, 9/125μm single-mode fiber transmission up to 10km, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal housing for reducing electromagnetic interference, ROSA lead-free standard, single +3.3V power supply, supporting digital diagnostic monitoring function, SFF-8472 protocol

产品详情
资料下载

Compatible Model Name	SFP-LX-U	Vendor Name	CFTX
Form Factor	SFP	Data Rate	1000Mbps
Wavelength	1310nm	Max Transmission Distance	10km
Connector	Duplex-LC	Media	Single mode-SMF
Transmitter power	-9~-3dBm	Receiver sensitivity	<-24dBm
DDM/DOM	Yes	Temperature Range	0~70°C（Commercial grade） /-40~85°C（Industrial grade）
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA	Laser Type	FP/DFB
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
