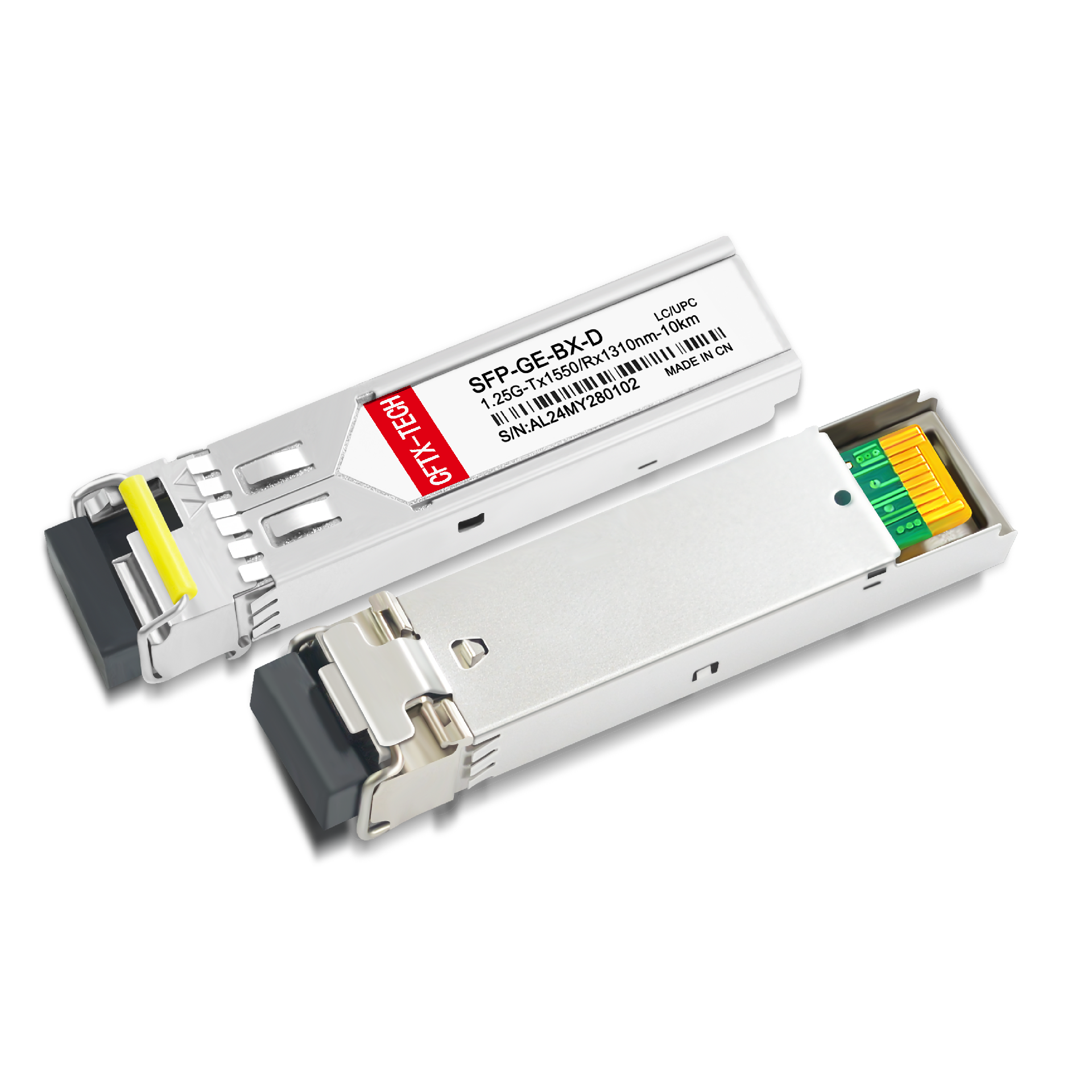

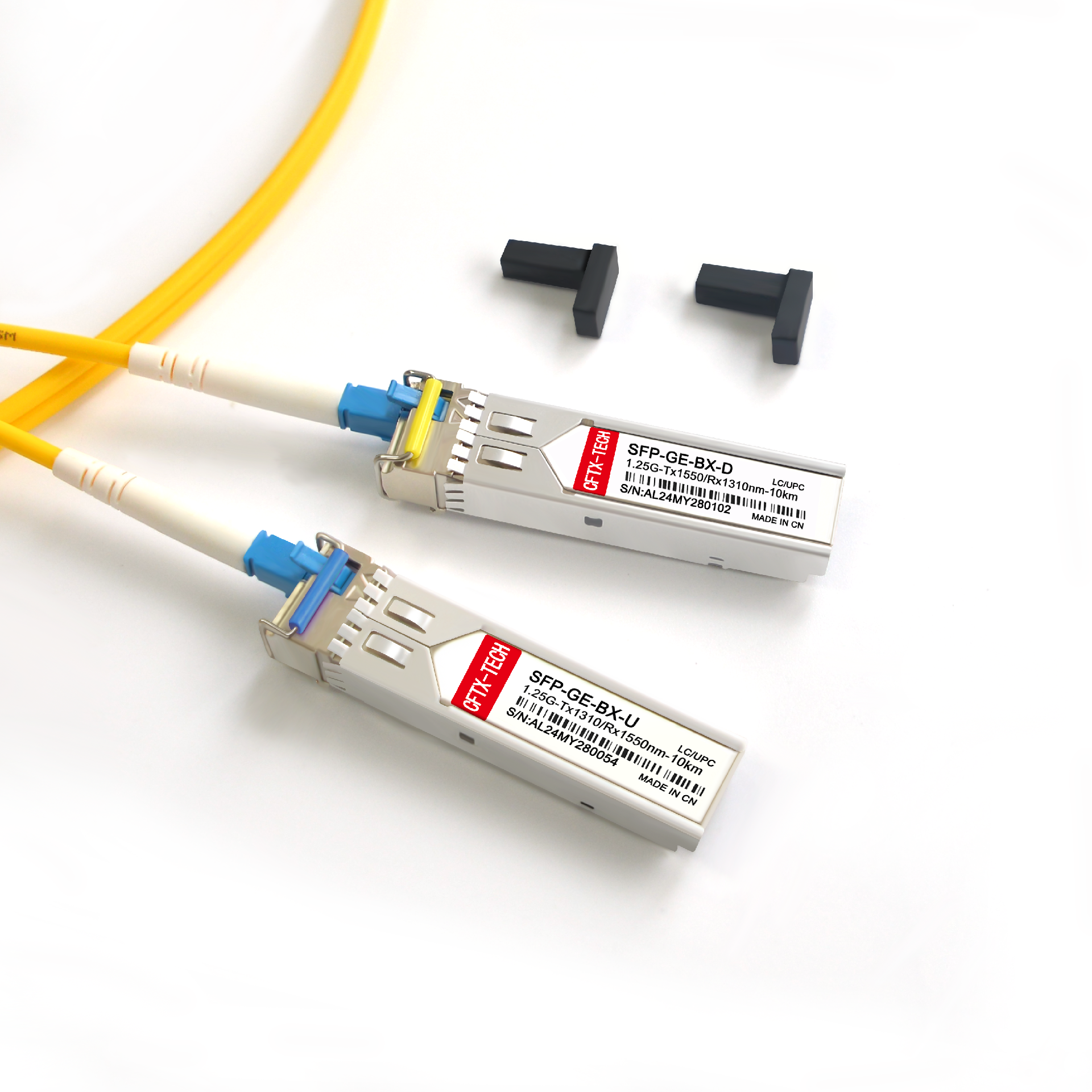

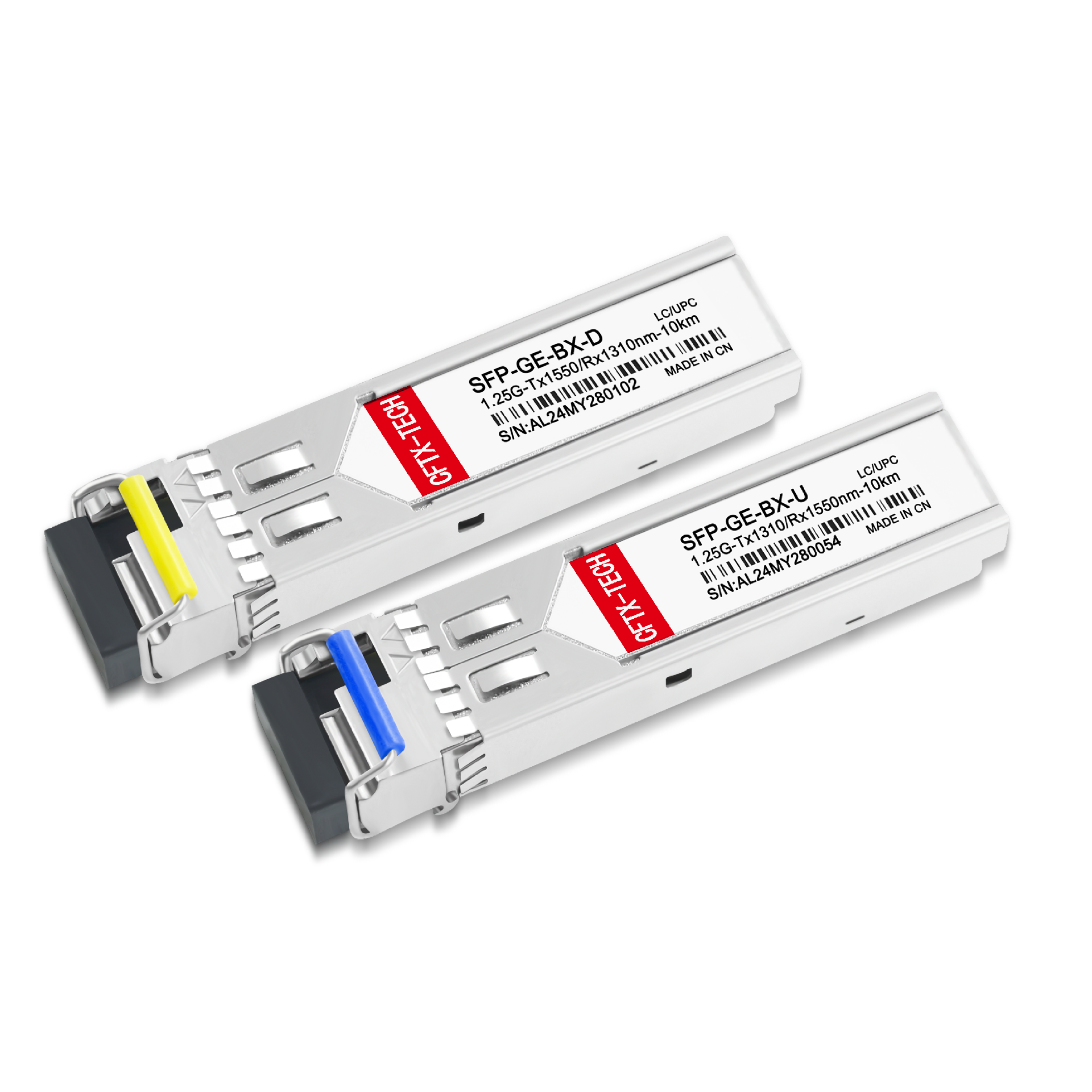

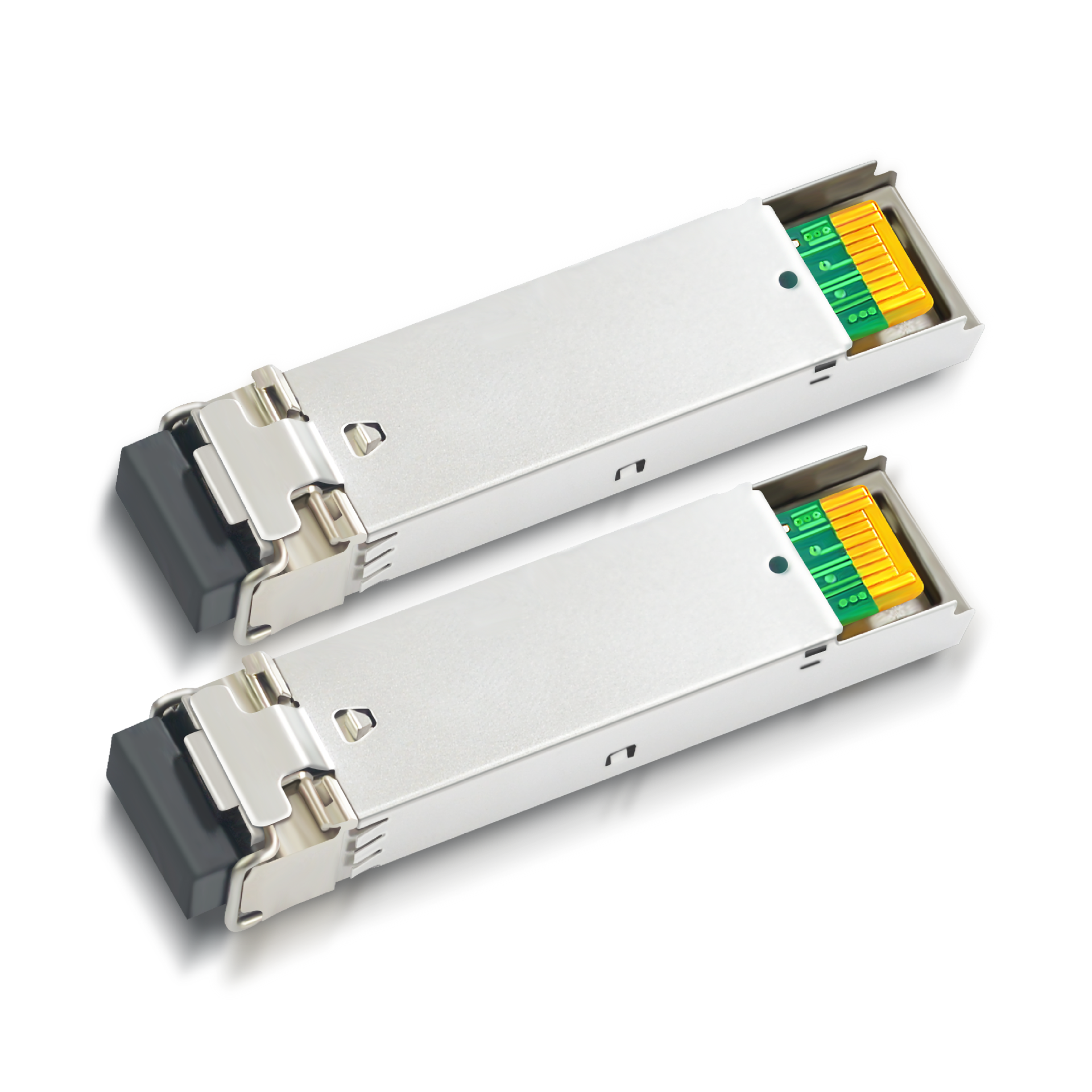

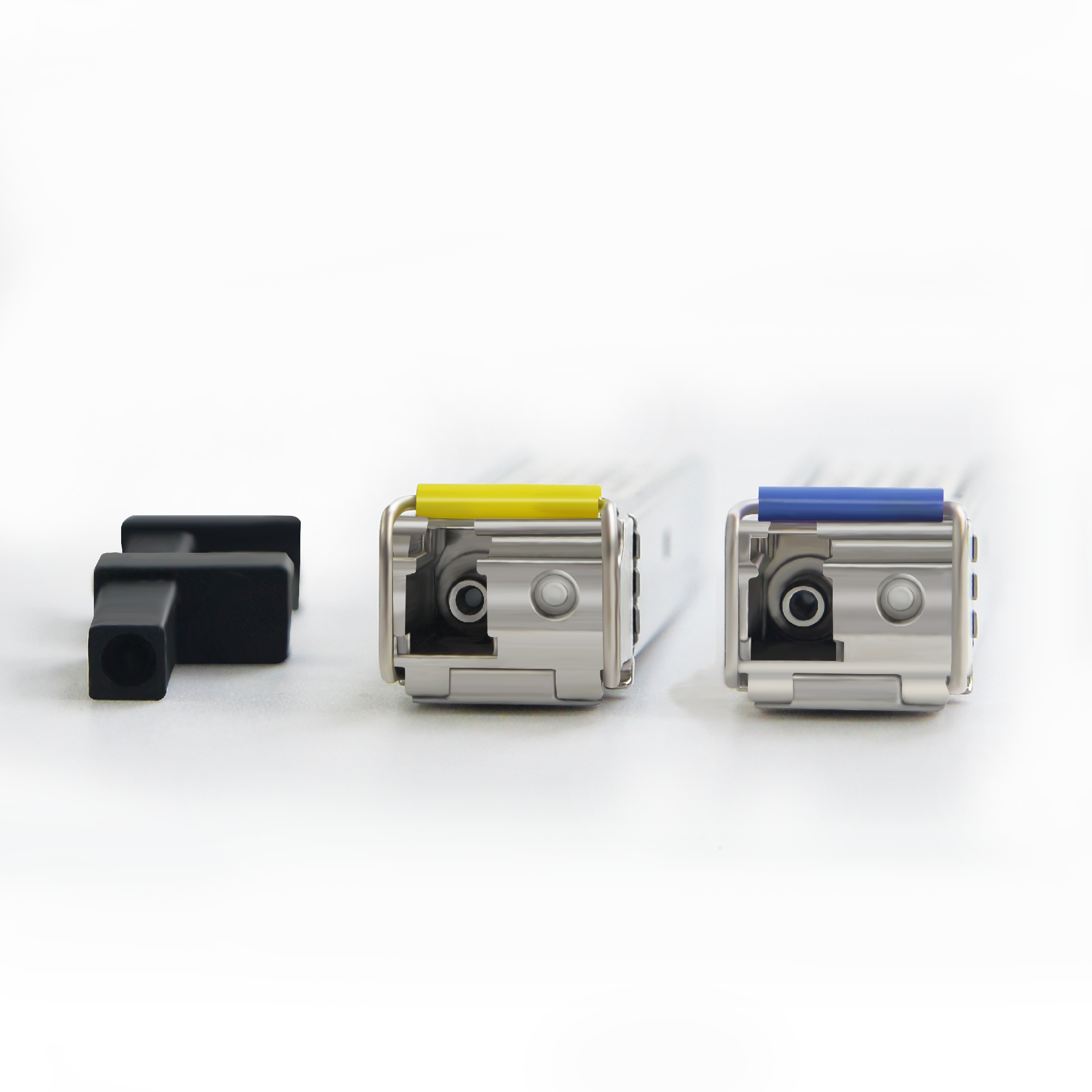

SFP BIDI-1.25G-（1310-1550nm）-10km-LC-DDM

1.25Gb/s data transmission speed, FP/DFB laser transmitter and PIN photodetector, 9/125 μm single-mode fiber transmission can reach 10km, hot swappable SFP interface, LC/UPC type pluggable optical interface, low power consumption, using metal housing to reduce electromagnetic interference（EMI), complying with ROSA lead-free standard, single channel+3.3V power supply, supporting digital diagnostic monitoring function, complying with SFF-8472 protocol

产品详情
资料下载

Compatible Model Name	SFP-BX-(U)D	Vendor Name	CFTX
Form Factor	SFP	Data Rate	1000Mbps
Wavelength	1310nm/1550nm	Max Transmission Distance	10km
Connector	Simplex-LC	Media	Single mode-SMF
Transmitter power	-9~-3dBm	Receiver sensitivity	<-24dBm
DDM/DOM	Yes	Temperature Range	0~70°C（Commercial grade） /-40~85°C（Industrial grade）
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA	Laser Type	FP/DFB
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
