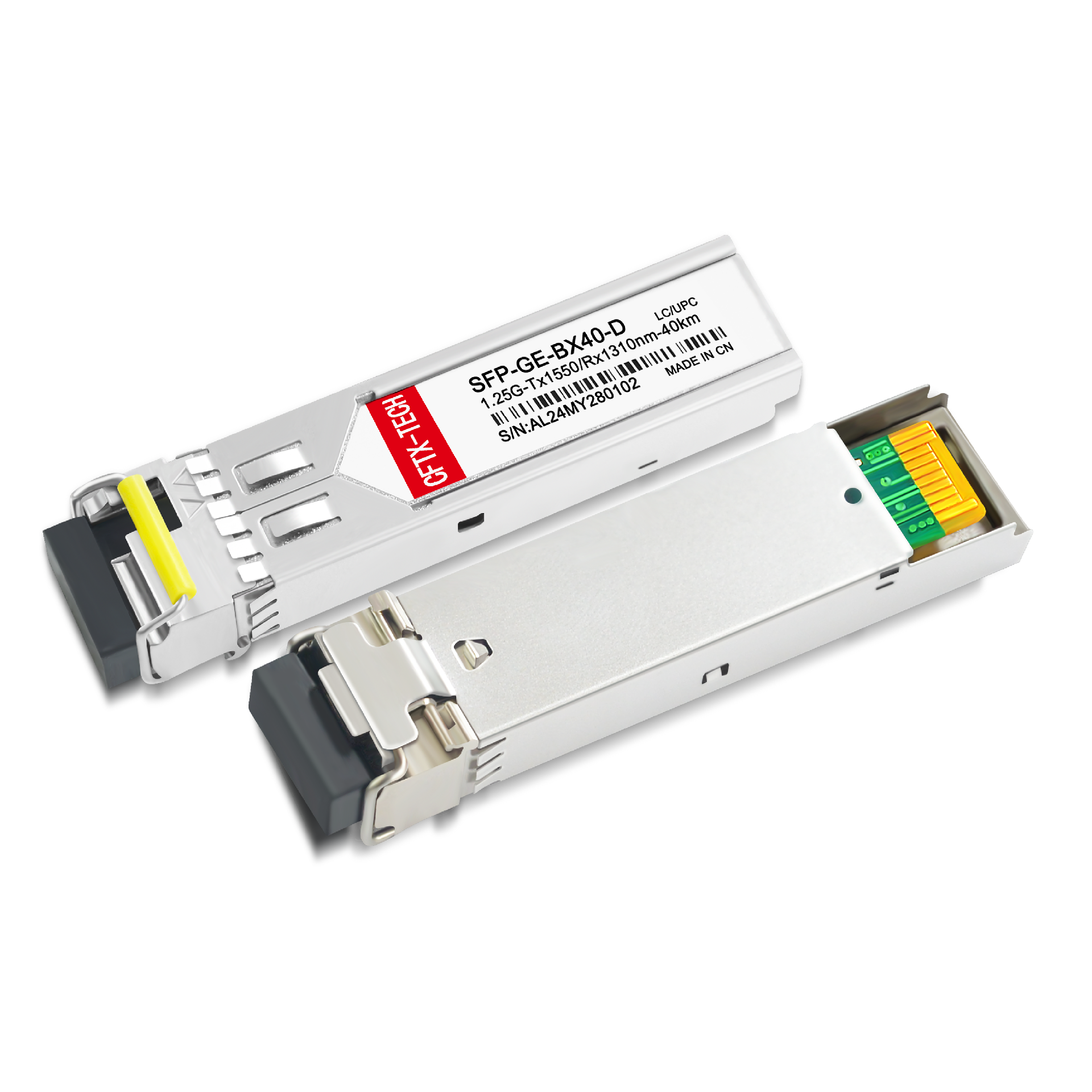

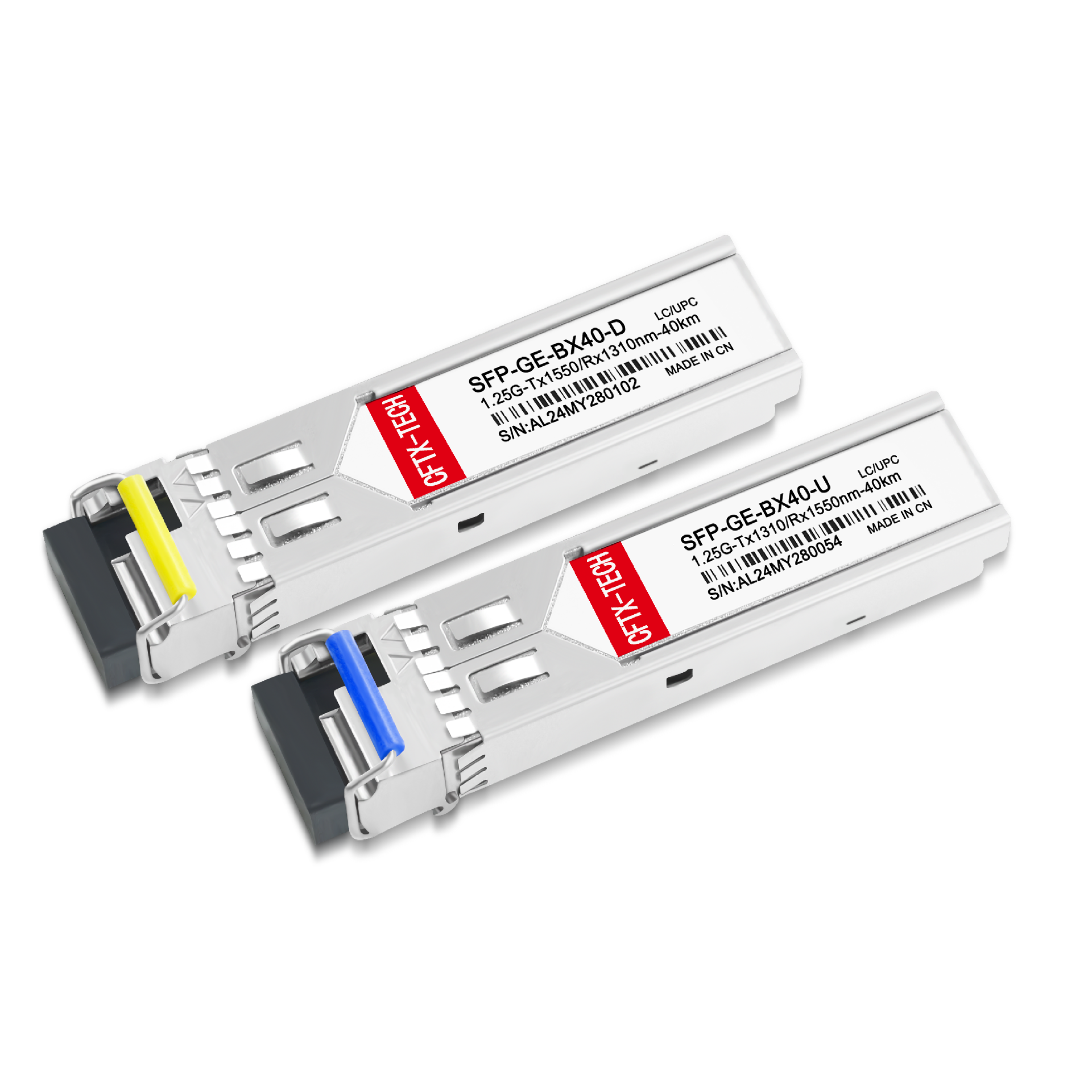

SFP-1.25G-BIDI 31/55nm 40KM
Model Name: CFTX-SFP-1.25G-BD40 Brand: CFTX, Package Type: SFP Rate: 1000Mbps, Wavelength: 1550nm-TX/1310nm-RX, Transmission Distance: 40km, Interface: LC/SC: Simplex Laser: DFB, BiDi, Fiber Type: Single-Mode, SMF, Digital Diagnostics (DDM/DOM), Yes/No, Transmit Optical Power: -3~2dBm, Receiver Sensitivity: < -23dBm, Commercial Temperature: 0~70°C (32~158°F), Extension Temperature: -5~85°C (23~185°F), Industrial Temperature: -40~85°C (-40~185°F) protocol fast
| Compatible Model Name | SFP-1.25G-BD40 | Vendor Name | CFTX |
| Form Factor | SFP | Data Rate | 1000Mbps |
| Wavelength | 1550nm-Tx/1310nm-RX | Max Transmission Distance | 40km |
| Connector | Simplex-LC/SC | Media | Single mode-SMF |
| Transmitter power | -3~-2dBm | Receiver sensitivity | <-23dBm |
| DDM/DOM | Yes | Temperature Range | 0~70°C（Commercial grade） /-40~85°C（Industrial grade） |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, mobile communication systems | Laser Type | DFB |
| Compatible Brands | (Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP…… |
