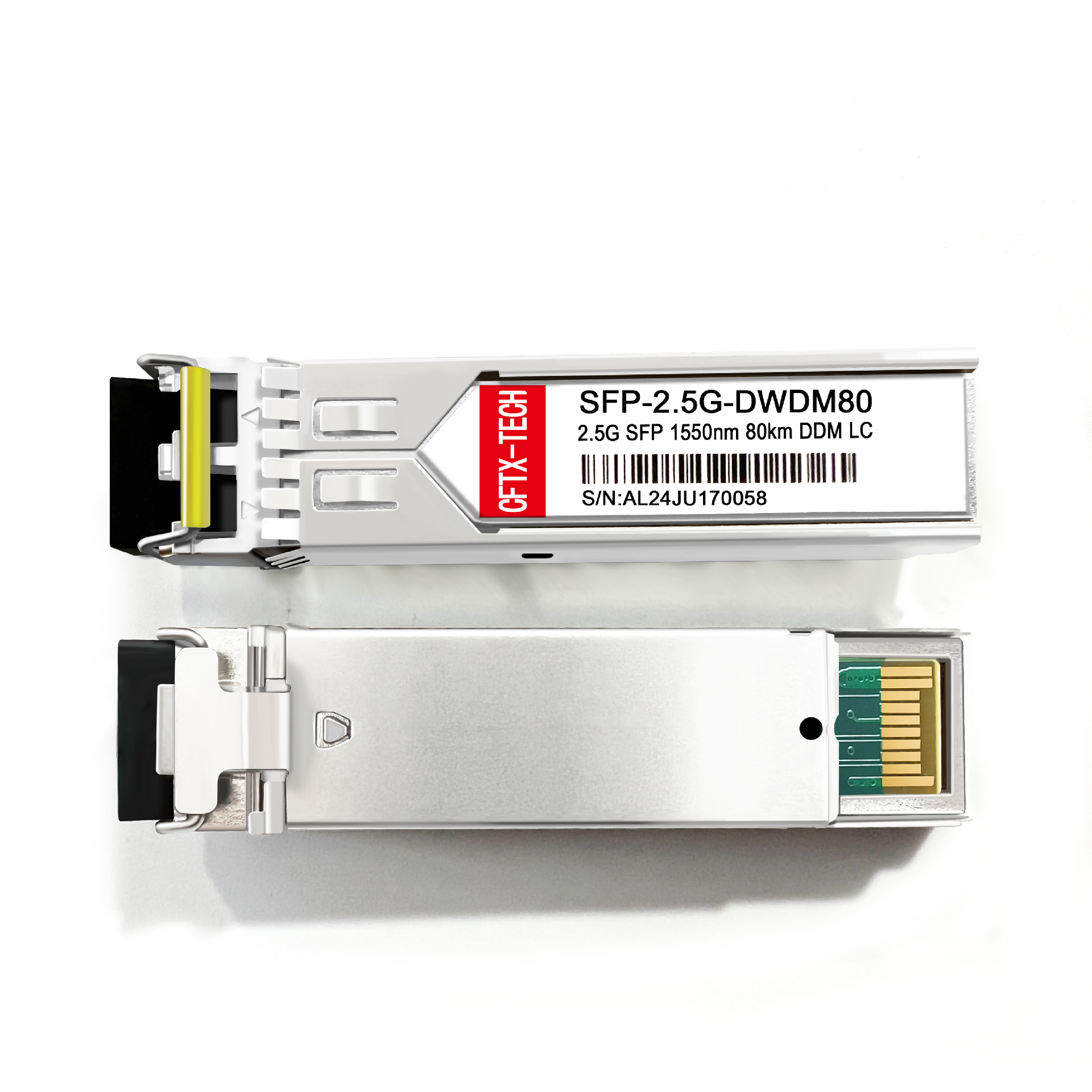

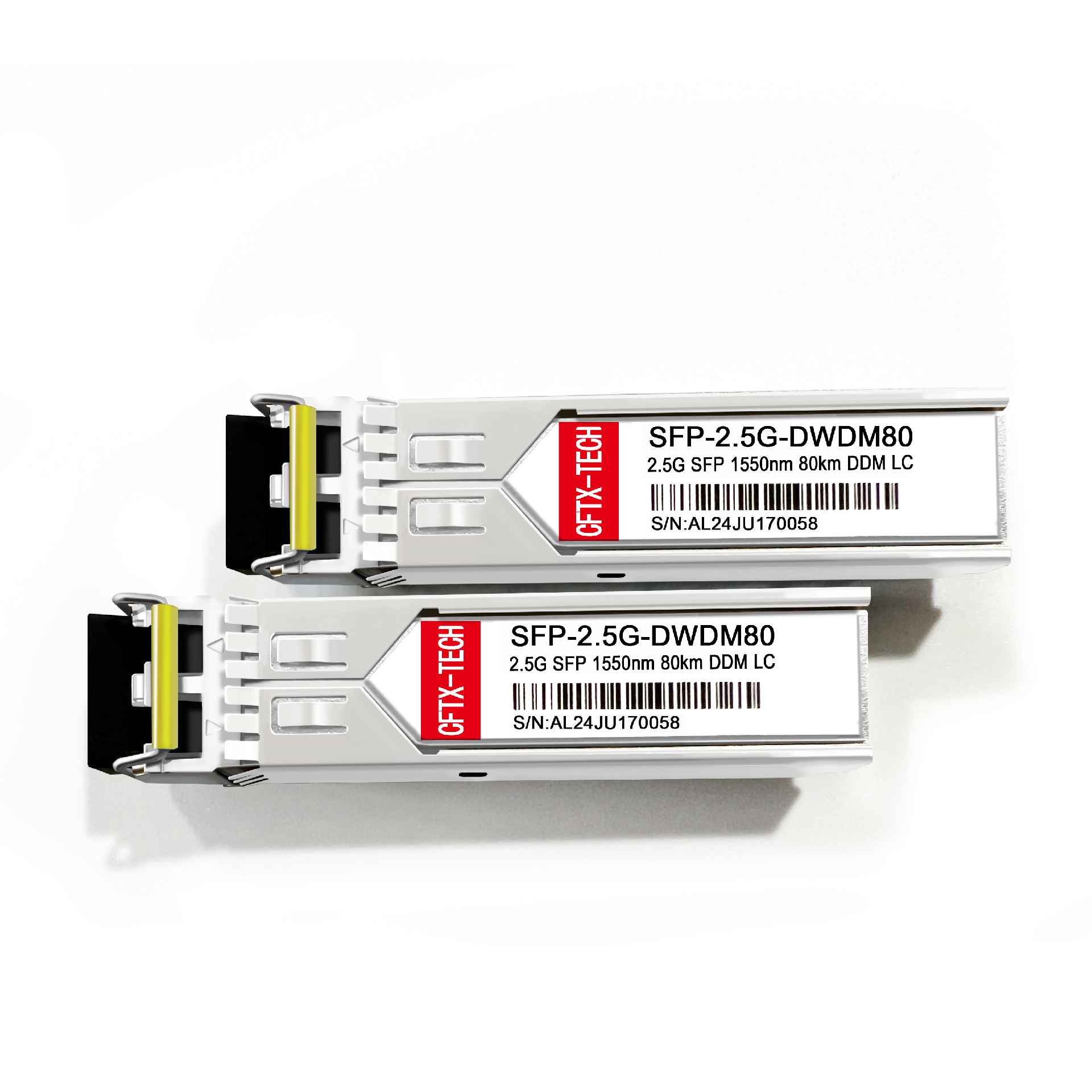

2.5G-SFP-DWDM-C21-80km

Compatible Model Name SFP-2.5G-DWDM80Vendor NameCFTXForm FactorSFPData Rate2.67GBbpsWavelength1528.77nm~1563.86nmMax Transmission Distance80kmConnectorDuplex-LCMediaSingle mode-SMFTransmitter power0~-+5dBmReceiver sensitivity<-28dBmDDM/DOMYesTemperature Range0~70°C

产品详情
资料下载

Compatible Model Name	SFP-2.5G-DWDM80	Vendor Name	CFTX
Form Factor	SFP	Data Rate	2.67GBbps
Wavelength	1528.77nm~1563.86nm	Max Transmission Distance	80km
Connector	Duplex-LC	Media	Single mode-SMF
Transmitter power	0~-+5dBm	Receiver sensitivity	<-28dBm
DDM/DOM	Yes	Temperature Range	0~70°C（Commercial grade） /-40~85°C（Industrial grade）
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA	Laser Type	DFB
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
