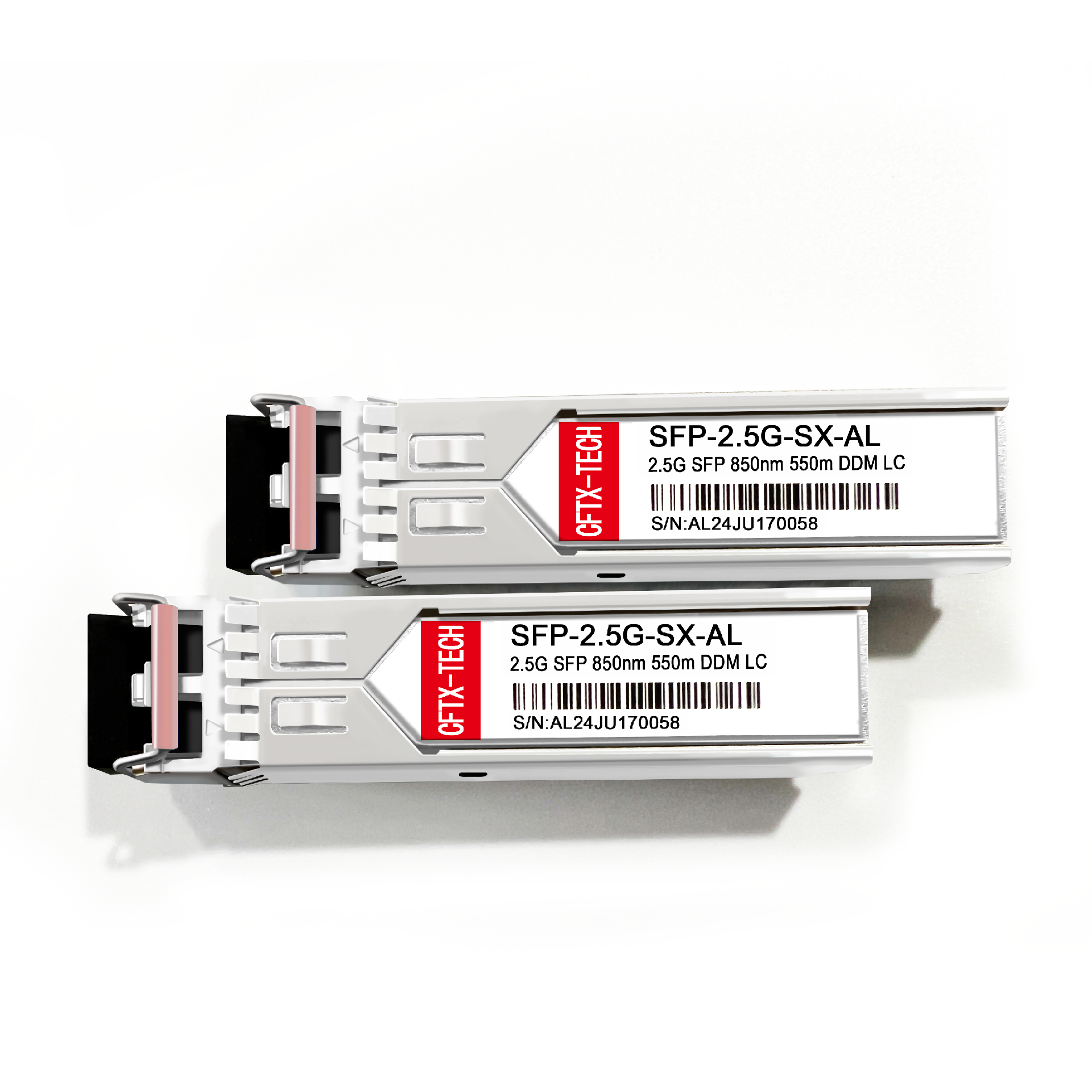

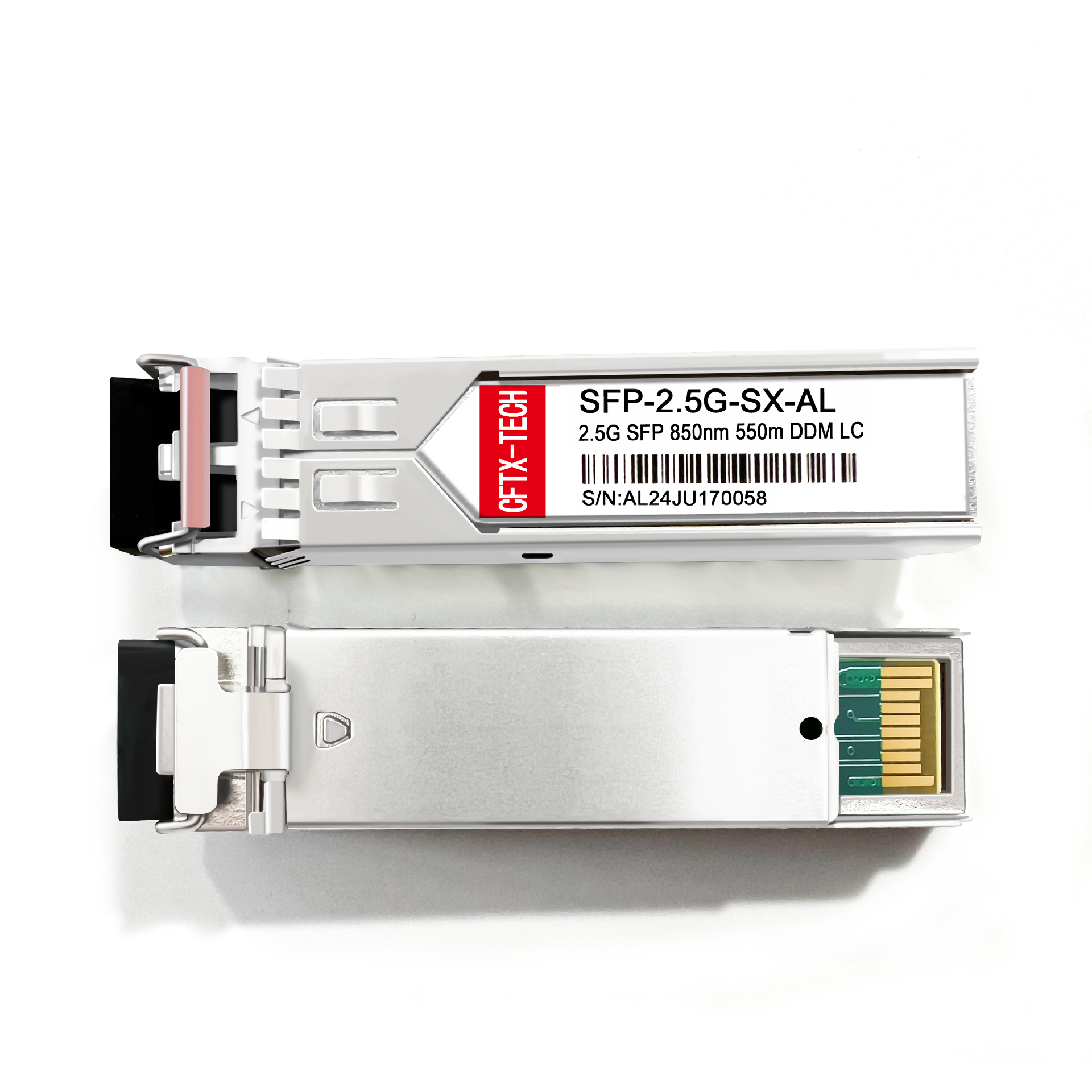

2.5G-SFP-SX-850nm-500M

2.67Gb/s data transmission speed, VCSEL laser transmitter and PIN photodetector, 55/62.5 μ m single-mode fiber transmission up to 550m, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal housing for reducing electromagnetic interference, ROSA lead-free standard, single +3.3V power supply, support digital diagnostic monitoring function, SFF-8472 protocol

产品详情
资料下载

Compatible Model Name	SFP-2.5G-MM	Vendor Name	CFTX
Form Factor	SFP	Data Rate	1000Mbps
Wavelength	850nm	Max Transmission Distance	550m
Connector	Duplex-LC	Media	Multimode-SMF
Transmitter power	-9~0dBm	Receiver sensitivity	<-17dBm
DDM/DOM	Yes	Temperature Range	0~70°C（Commercial grade） /-40~85°C（Industrial grade）
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA	Laser Type	VCSEL
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
