Product overview

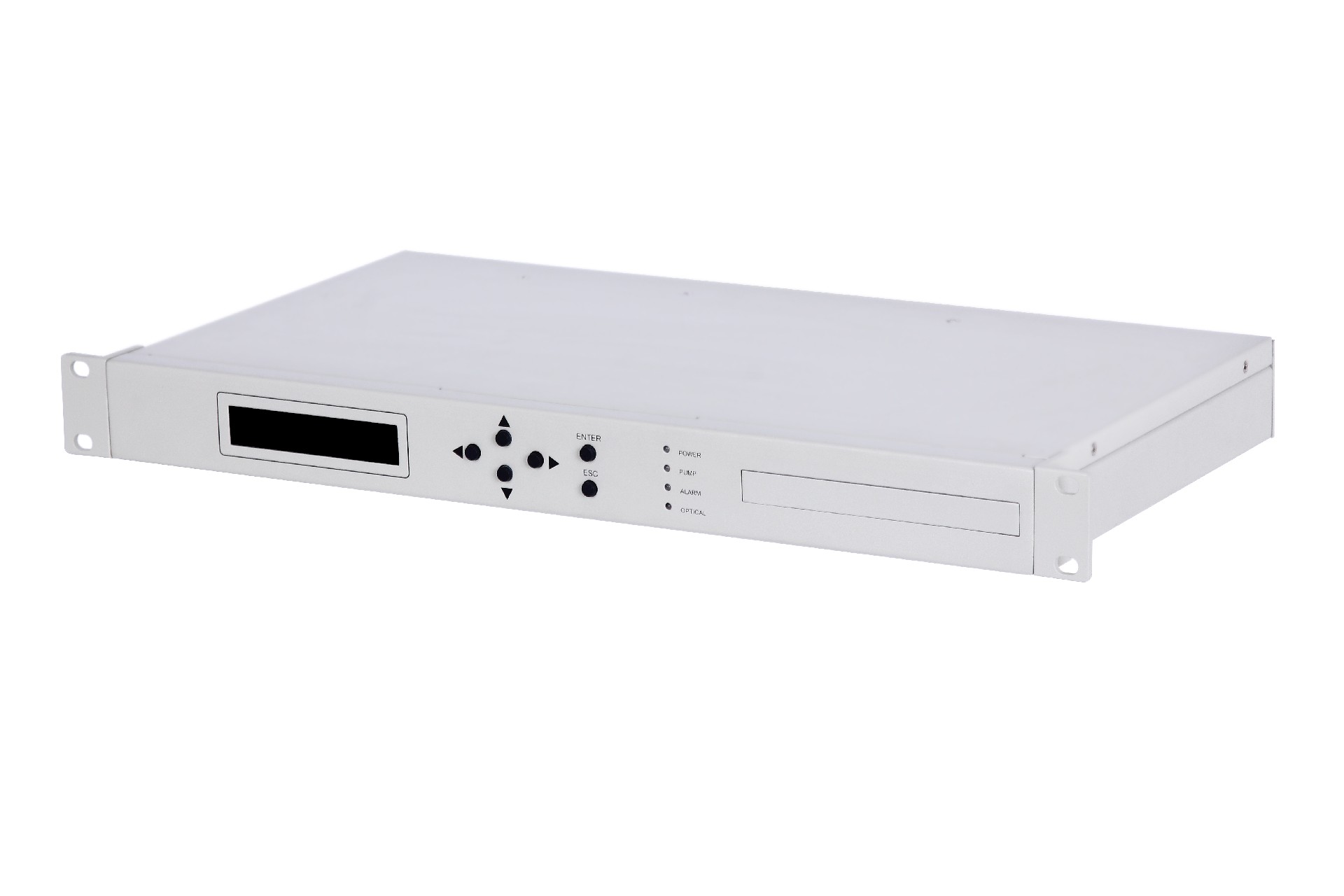

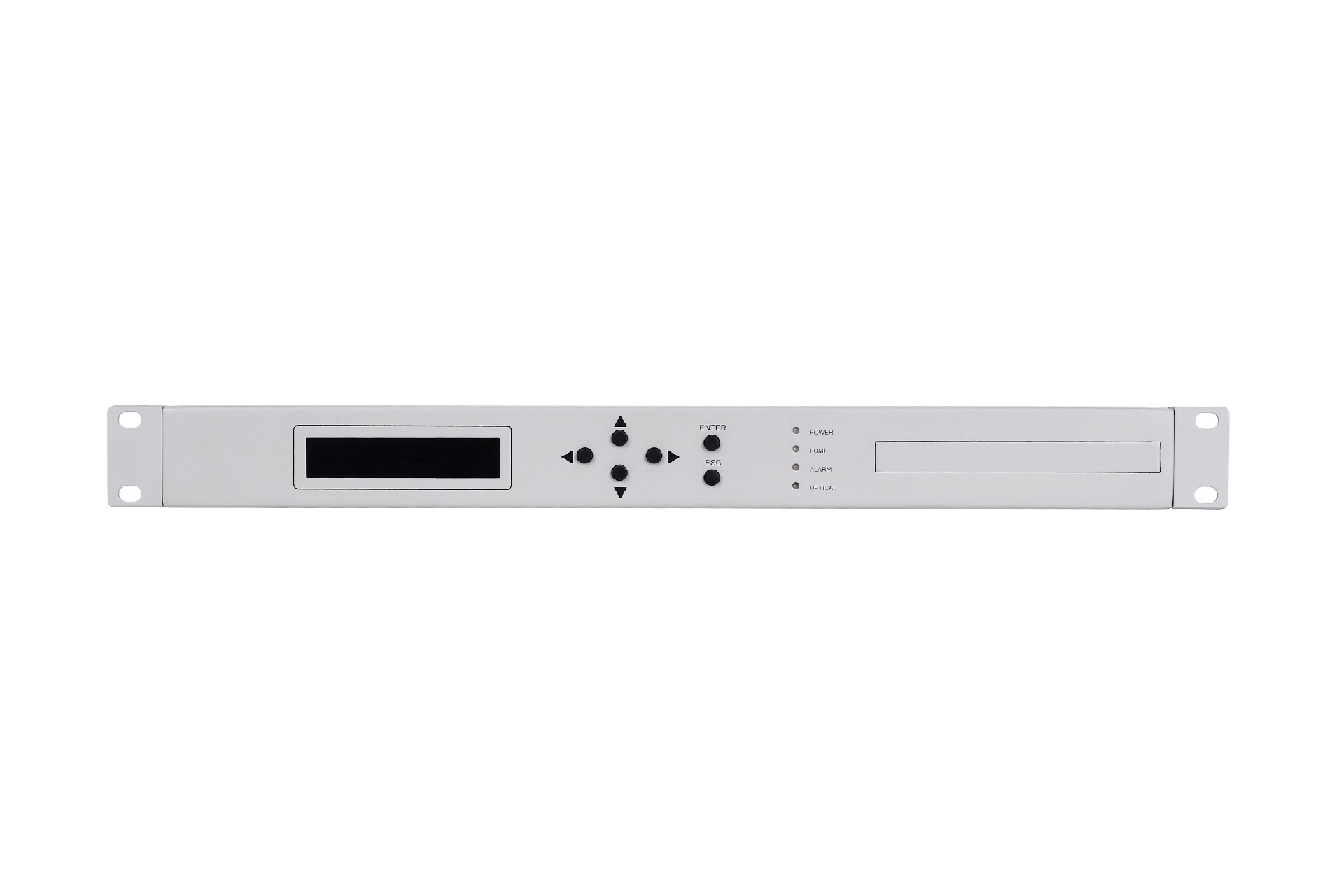

It is mainly used in BA-1550-series 1550nm optical fiber amplifier 1550 important optical relay transmission in optical fiber communication system equipment, mainly for image signal, digital TV signal, telephone voice signals and data (or compressed data) ultra long haul transmission of signals. The product selection of imported high-performance baits fiber, the international famous brand low-noise pump laser, and built-in sound embedded automatic monitoring and control system, ensure the machine excellent performance indicators.
Features
High output power
Output power tunable
Low NF
RS-485、RS-232 network interfac
Multi power supply (Rack Mount);
AC：220V-110V；DC：-48V
Application
Access network
IP ATM SDH Network
Digital communication network
DWDM system
Product Name | Power amplifier（BA） | ||||
Parameter | Min | Typ | Max | Unit | |
Operating Wavelength | 16 Channel | 1546 | 1550 | 1561 | nm |
32 Channel | 1535 | 1562 | |||
48 Channel | 1528 | 1568 | |||
Input power | -10 | 6 | dBm | ||
Gain | 14 | 25 | 33 | dB | |
Output power | 21 | dBm | |||
Noise figure | 5.0 | dB | |||
Input/output Isolation | 30 | dB | |||
Output Pump leakage | -30 | dBm | |||
Input/output return loss | 45 | dB | |||
polarization dependent loss | 0.5 | dB | |||
Polarization mode dispersion | 0.5 | ps | |||
Operating Temperature | -5 | 55 | ℃ | ||
Humidity | 5 | 95 | % | ||
Storage Temperature | -40 | 85 | ℃ | ||
power consumption | 30 | W | |||
Power | -48V DC or 220V AC | V | |||
Interface | FC/UP or others | ||||
Dimension | (W x L x H) 482.6x245x43.6 | mm | |||
Ordering inforamtion
Product | Package | Input Power | Output Power | Power Supply 1 | Power Supply 2 | Connector | network management |
EDFA | 1:1U Chassis | 2：BA 3：LA 4：PA
| 010:-10dBm … 24:24dBm
| 1:110VAC 2:220VAC 3:110~220VAC 4:-48VDC 9:other | 1:110VAC 2:220VAC 3:110~220VAC 4:-48VDC 9:Other 0：none | 1;SC/PC 3:FC/PC 5:LC/PC 9:other | 1：with 2：without |
