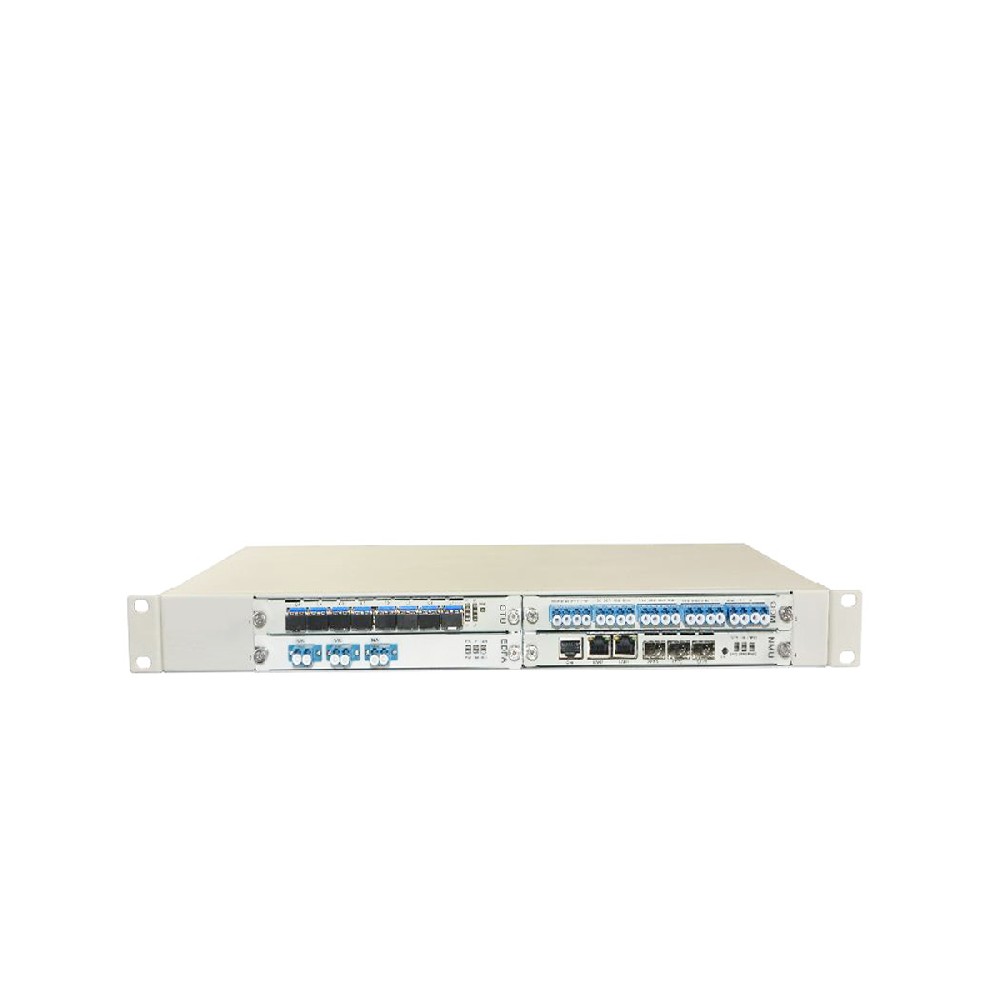

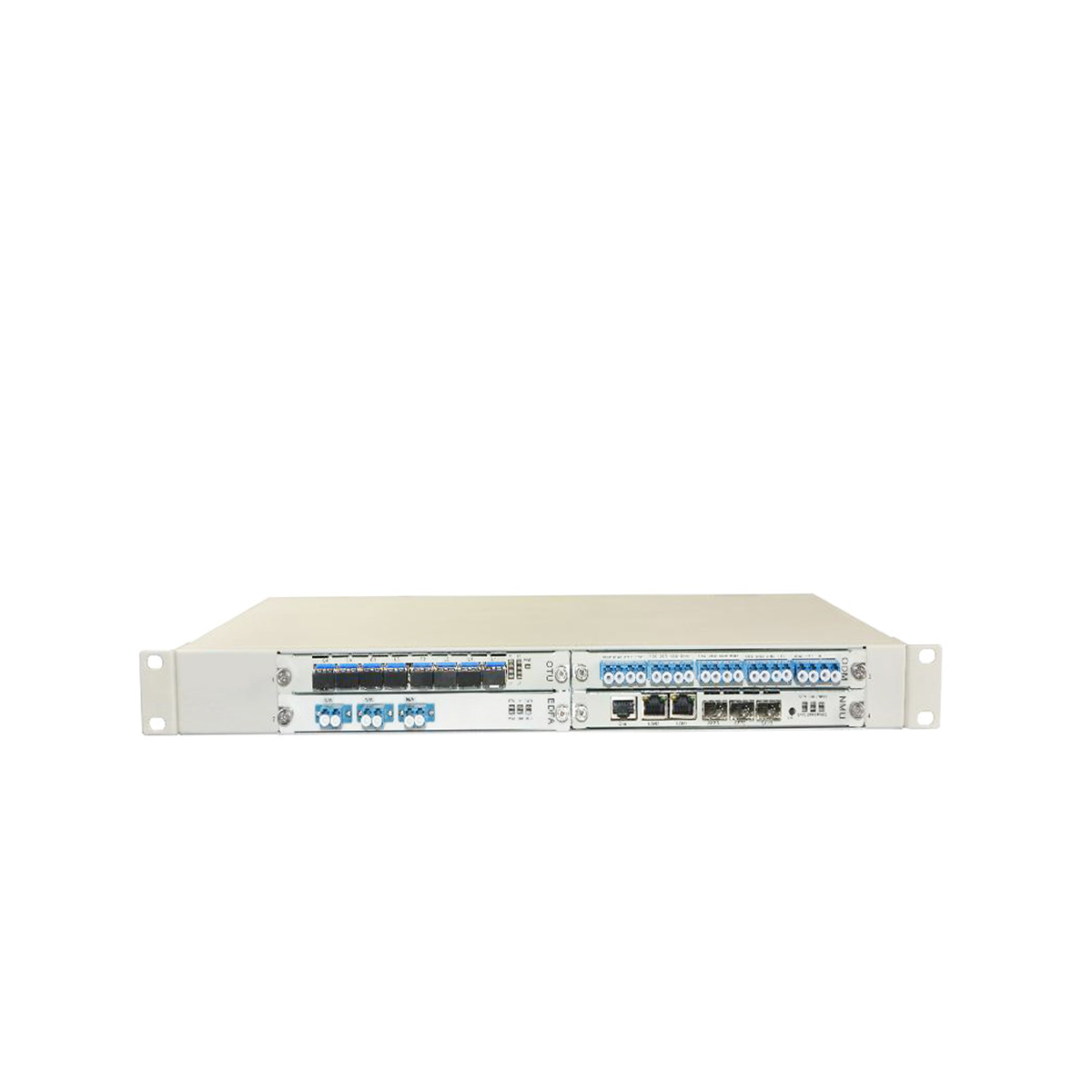

CFTX-1U-DM04 1U integrated transmission equipment is highly integrated and small. It adopts 19 inch standard 1U rack to provide 1+1 redundant backup of power (AC/DC optional), and is easy to install and use. 1U integrated transmission equipment can provide up to 4 service slots, supports different service cards to mix and insert and hot swapping, supports in-band and out-of-band network management; selects each channel bandwidth according to needs to meet different needs of customers; remote online upgrades, maintainability.
Flexible networking, occupies less space, and super expansibility.
Supporting CWDM/DWDM/EDFA/OLPS/OTAP and other business cards hot-swapping mode.
Supporting SDH/SONET/POS/EPON/GPON/CPRI/SAN/ETHERNET service access at various rates.
Supporting single-fiber unidirectional, single-fiber bidirectional, dual-fiber bidirectional chain, star and ring types and other networking methods.
Supporting client access from different vendors, interconnecting with devices from multiple vendors, supporting client devices as single mode (1310nm/1550nm), multi-mode (850nm/1310nm), electrical port (RJ45), etc., can realize OADM optical add-drop multiplexing function, and intermediate nodes can be up and down wavelength.
Supporting SNMP-based unified network management platform, the network management methods include CLI, WEB, NetRiver (graphical interface).
Supporting 1 + 1 power hot swapping redundant backup, AC and DC power supply is optional.
System Parameter | Technical Index | |
Maximum capacity of single system | 4, 8 and 16 waves. | |
Wavelength range | Compliance with ITU-T G.692, ITU-T G.695 standard. | |
Service access types | PDH, EPON, GPON. | |
Optical port transmission mode | Adopts 2R transmission mode, each channel supports 32M~111.81Gbit/s rate transparent transmission;
Adopts 3R transmission mode, each channel supports155Mbit/s, 622Mbit/s, 1.25Gbit/s, 2.488Gbit/s, 4GFC, 8GFC, 10GFC, 11.3Gbit/s, 40Gbis/s, 100Gbis/s rate. (Optional). | |
Physical network topology | Chain type, Star type and Ring type. | |
Fiber type | G.652, G.653 (not recommended), G.655. | |
Network management mode | CLI, NetRiver, WEB. | |
Product dimension | 440(W)*44(H)*285(D)(mm). | |
Environmental requirements | Working temperature | -10℃ ~ 70℃. |
Storage temperature | -40℃ ~ 80℃. | |
Relative humidity | 5% ~ 95% no condensation. | |
Power supply requirements (standard value) | 220V/AC, 50Hz; -48V/DC (optional). | |
Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA standards. | |
Power consumption | <120W. | |
