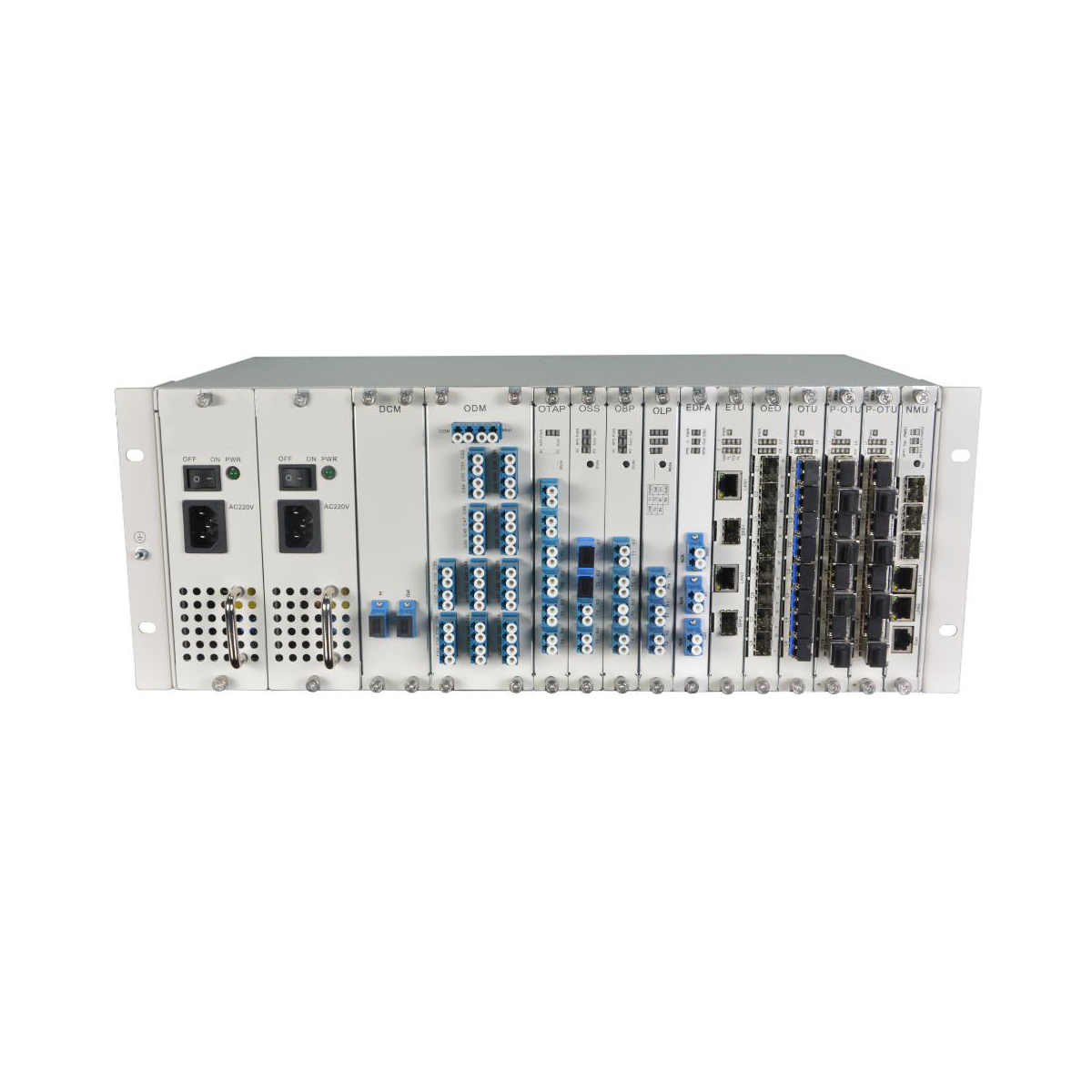

CFTX-4U-DM16 4U integrated transmission equipment is highly integrated and small. It adopts 19 inch standard 4U rack to provide 1+1 redundant backup of power (AC/DC optional), and is easy to install and use. 4U integrated transmission equipment can provide up to 16 service slots, support different service cards to mix and insert and hot swap, support in-band and out-of-band network management; select each channel bandwidth according to needs to meet different needs of customers; remote online upgrade , maintainability.
Flexible networking, occupies less space, and super expansibility.
Supporting CWDM/DWDM/EDFA/OLPS/OTAP and other business cards hot-swapping mode.
Supporting SDH/SONET/POS/EPON/GPON/CPRI/SAN/ETHERNET service access at various rates.
Supporting single-fiber unidirectional, single-fiber bidirectional, dual-fiber bidirectional chain, star and ring types and other networking methods.
Supporting client access from different vendors, interconnecting with devices from multiple vendors, supporting client devices as single mode (1310nm/1550nm), multi-mode (850nm/1310nm), electrical port (RJ45), etc., can realize OADM optical add-drop multiplexing function, and intermediate nodes can be up and down wavelength.
Supporting SNMP-based unified network management platform, the network management methods include CLI, WEB, NetRiver (graphical interface).
Supporting 1 + 1 power hot swapping redundant backup, AC and DC power supply is optional.
System Parameter | Technical Index | |
Maximum capacity of single system | 4, 8, 16, 40, 48, 80 and 96 waves. | |
Wavelength range | Compliance with ITU-T G.692, ITU-T G.695 standards. | |
Service access types | PDH, EPON, GPON, | |
Optical port transmission mode | Adopts 2R transmission mode, each channel supports 32M~111.81Gbit/s rate transparent transmission; Adopts 3R transmission mode, each channel supports155Mbit/s, 622Mbit/s, 1.25Gbit/s, 2.488Gbit/s, 4GFC, 8GFC, 10GFC, 11.3Gbit/s, 40Gbis/s, 100Gbis/s rate. (Optional). | |
Physical network topology | Chain type, Star type and Ring type. | |
Fiber type | G.652, G.653 (not recommended), G.655. | |
Network management mode | CLI, NetRiver, WEB. | |
Product dimension | 440 (W)*177(H)*250(D)(mm). | |
Environmental requirements | Working temperature | -10℃ ~ 70℃. |
Storage temperature | -40℃~ 80℃. | |
Relative humidity | 5% ~ 95% no condensation. | |
Power supply requirements (standard value) | 220V/AC, 50Hz; -48V/DC (optional). | |
Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA standard. | |
Power consumption | <300W. | |
