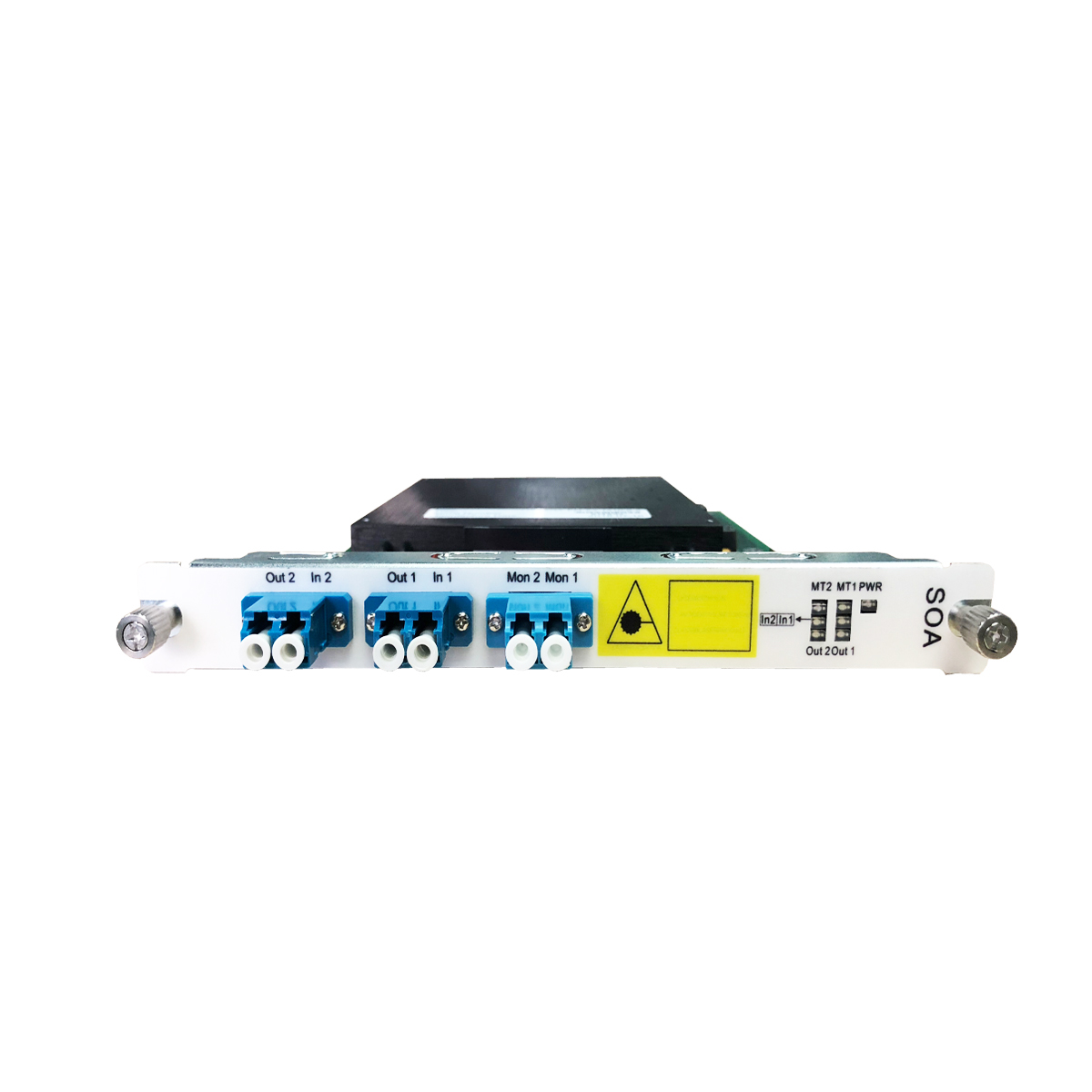

CFTX-EDFA-SOA

SOA amplifier card is a semiconductor optical amplifier module designed by CFTXto solve the problem of O-band optical signal amplification. It is compatible with service signals of different rates such as 100G/40G/10G. Its gain bandwidth ranges from 1230nm to 1360nm. The single card can simult

SOA amplifier card is a semiconductor optical amplifier module designed by CFTX to solve the problem of O-band optical signal amplification. It is compatible with service signals of different rates such as 100G/40G/10G. Its gain bandwidth ranges from 1230nm to 1360nm. The single card can simultaneously amplify four service signals at the same time, and can adopted to various application scenarios such as an information security system or a data transmission system.


  • Supporting O-band optical amplification.

  • Supporting 100G/40G/10G speed.

  • Supporting maximum saturated and output power + 10dB, and the minimum input power -20dB.

  • Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface).

  • Monitoring: pump drive current, pump output power, pump switch, pump temperature, input optical power, output optical power, module temperature.

  • Supporting to set pump switch, AGC mode and APC mode (input and output optical power is adjustable).


System Parameter

Technical Index

Wavelength range

1230nm~1360nm.

Input power range

-20dBm~+3dBm.

Output power range

+10dBm.

Single-channel gain

12dB~20dB.

Noise figure

7.5dB~8dB.

Gain flatness

2.0dB.

Uniformity

1.0dB.

Constancy

0.5dB.

Bias current

300mA.

Polarization dependent gain

2.0dB.

Network management mode

CLI, NetRiver, WEB.

Product dimension

177 (W)*20(H)*225(D)(mm).

Environmental requirements

Working temperature

-10℃ ~ 70℃.

Storage temperature

-40℃ ~ 80℃.

Relative humidity

5% ~ 95% no condensation.

Safety and EMC

Compliance with FCC, UL, CE, TUV, CSA standards.

Power consumption

<24W.
