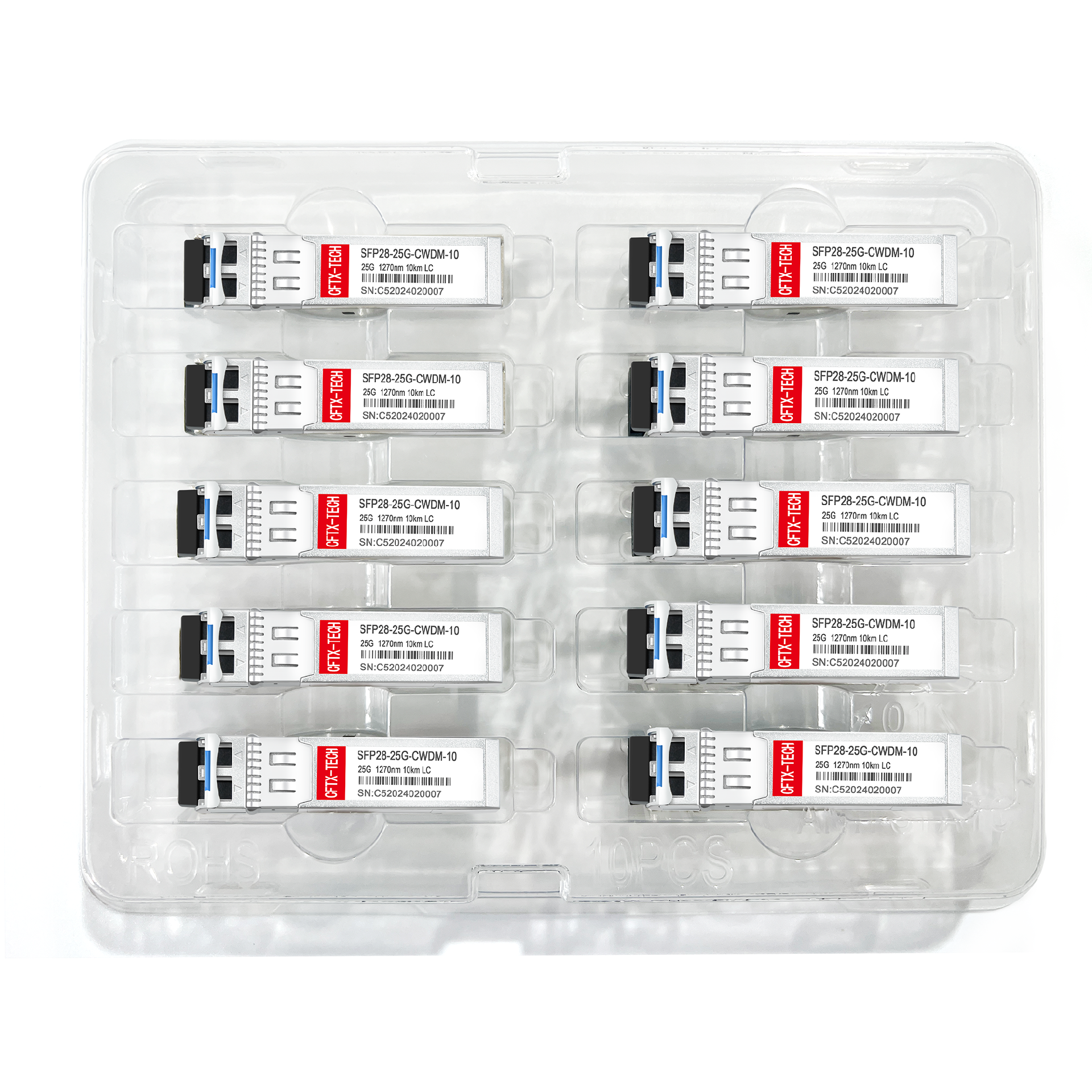

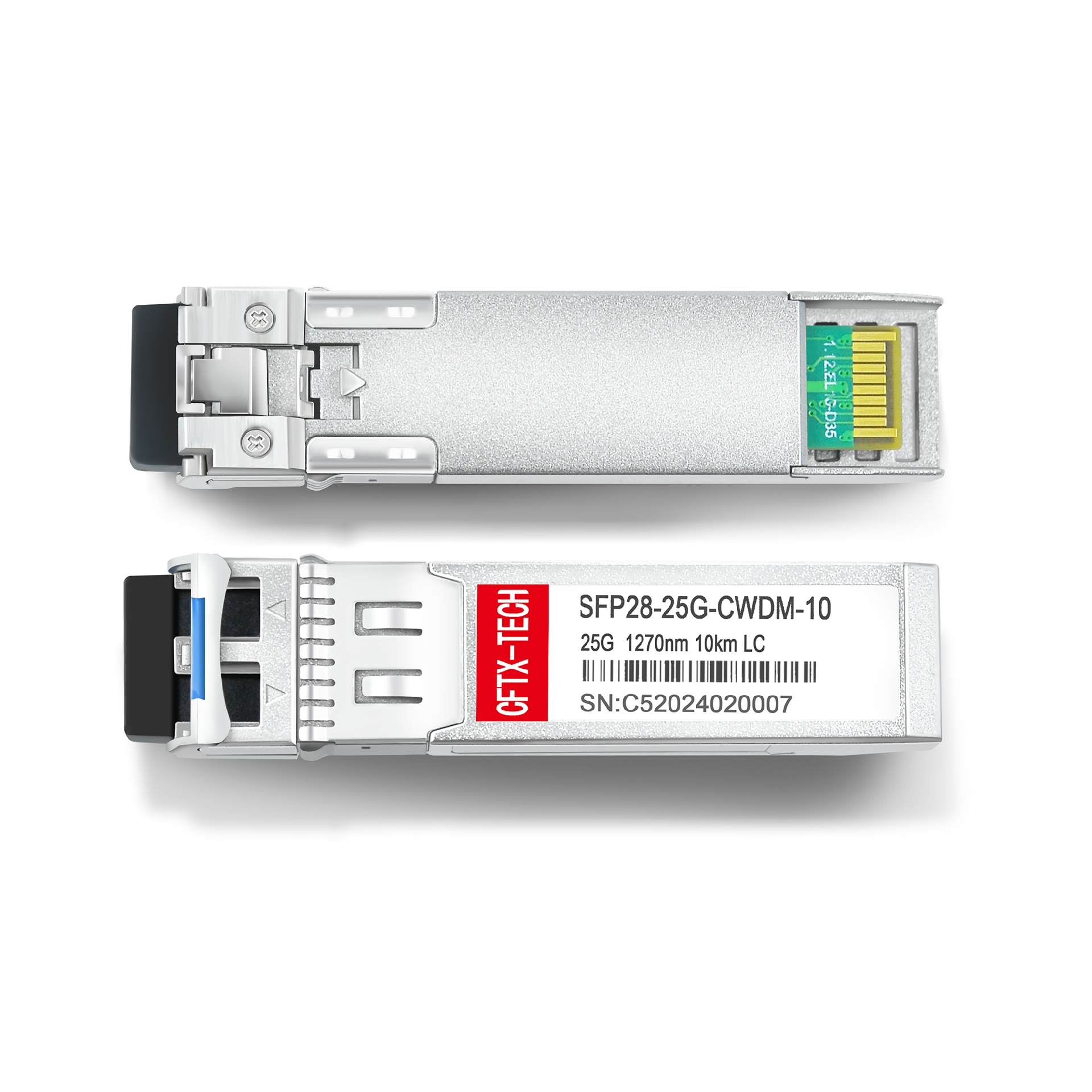

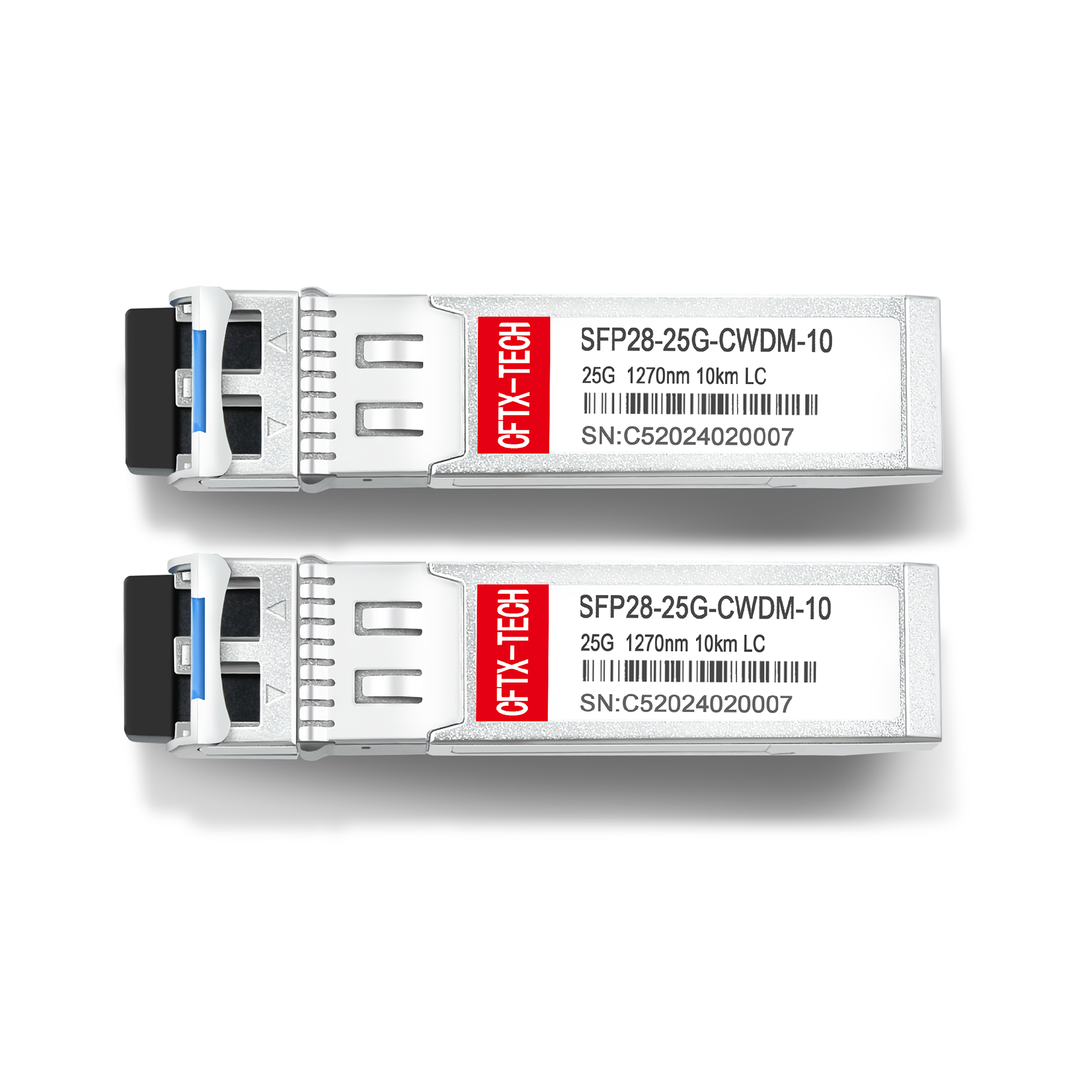

25G-SFP28-CWDM-C21-10km

Compatible Model NameSFP-25G-CWDMVendor NameCFTXForm FactorSFP28Data Rate25.78GbpsWavelength1271nm~1371nmMax Transmission Distance10kmConnectorDuplex-LCMediaSingle mode-SMFLaser TypeDFBReceiverPINDDM/DOMYesTemperature Range0~70°C （Commercial grade）-40~85℃（Industrial grade）Tra

产品详情
资料下载

Compatible Model Name	SFP-25G-CWDM	Vendor Name	CFTX
Form Factor	SFP28	Data Rate	25.78Gbps
Wavelength	1271nm~1371nm	Max Transmission Distance	10km
Connector	Duplex-LC	Media	Single mode-SMF
Laser Type	DFB	Receiver	PIN
DDM/DOM	Yes	Temperature Range	0~70°C （Commercial grade） -40~85℃（Industrial grade）
Transmitter power	-2~4dBm	Receiver sensitivity	<-14dBm
Power Consumption	1W	Extinction ratio	2dB
Modulation	NRZ	CDR	Transmit and Receive
Transmission dispersion	1dB	Power Budget	12dB
Packaging Technology	TO	FEC Function	Yes
Protocols	MSA, CPRI, eCPRI	Apply	25GBASE Ethernet, Data Center, Telecom
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
