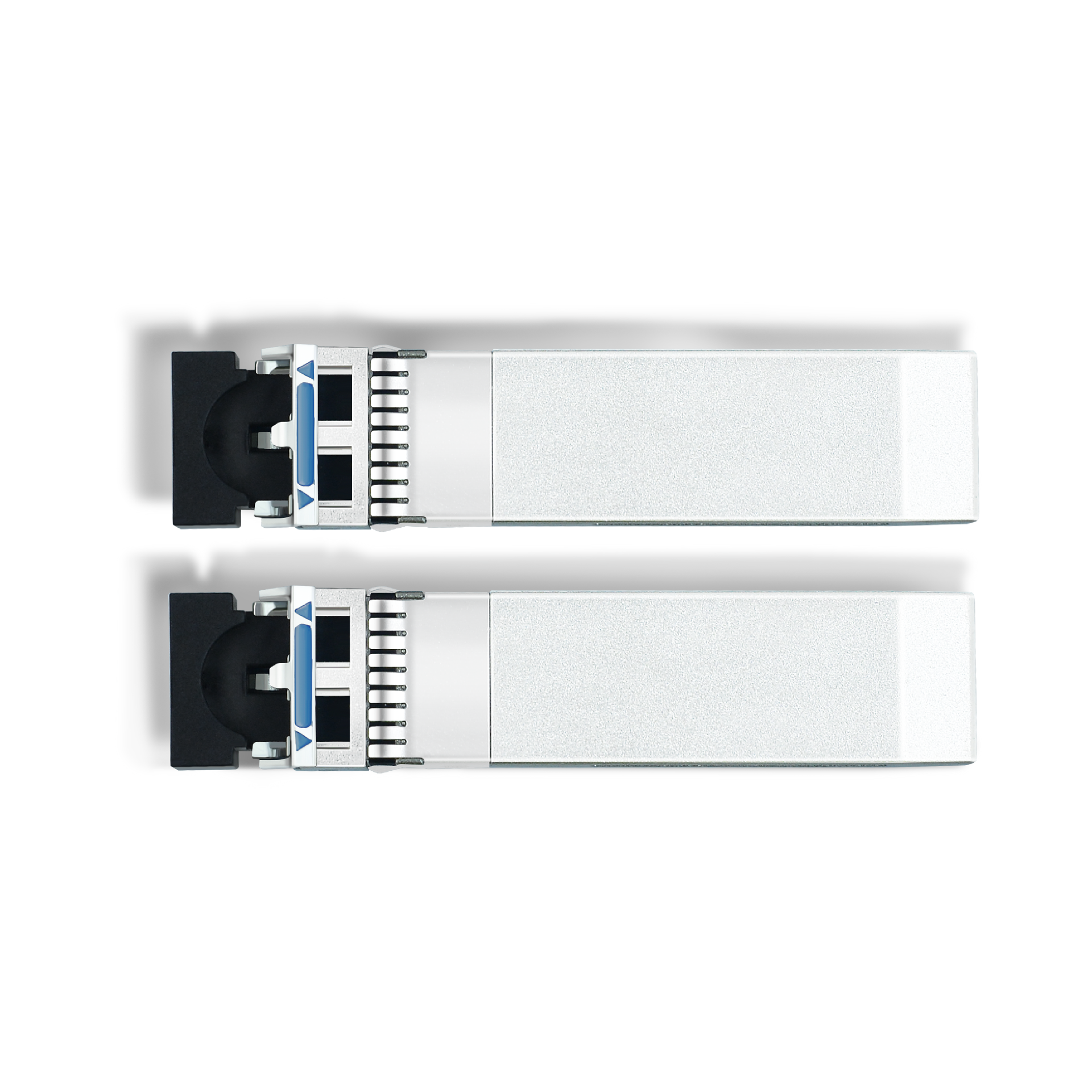

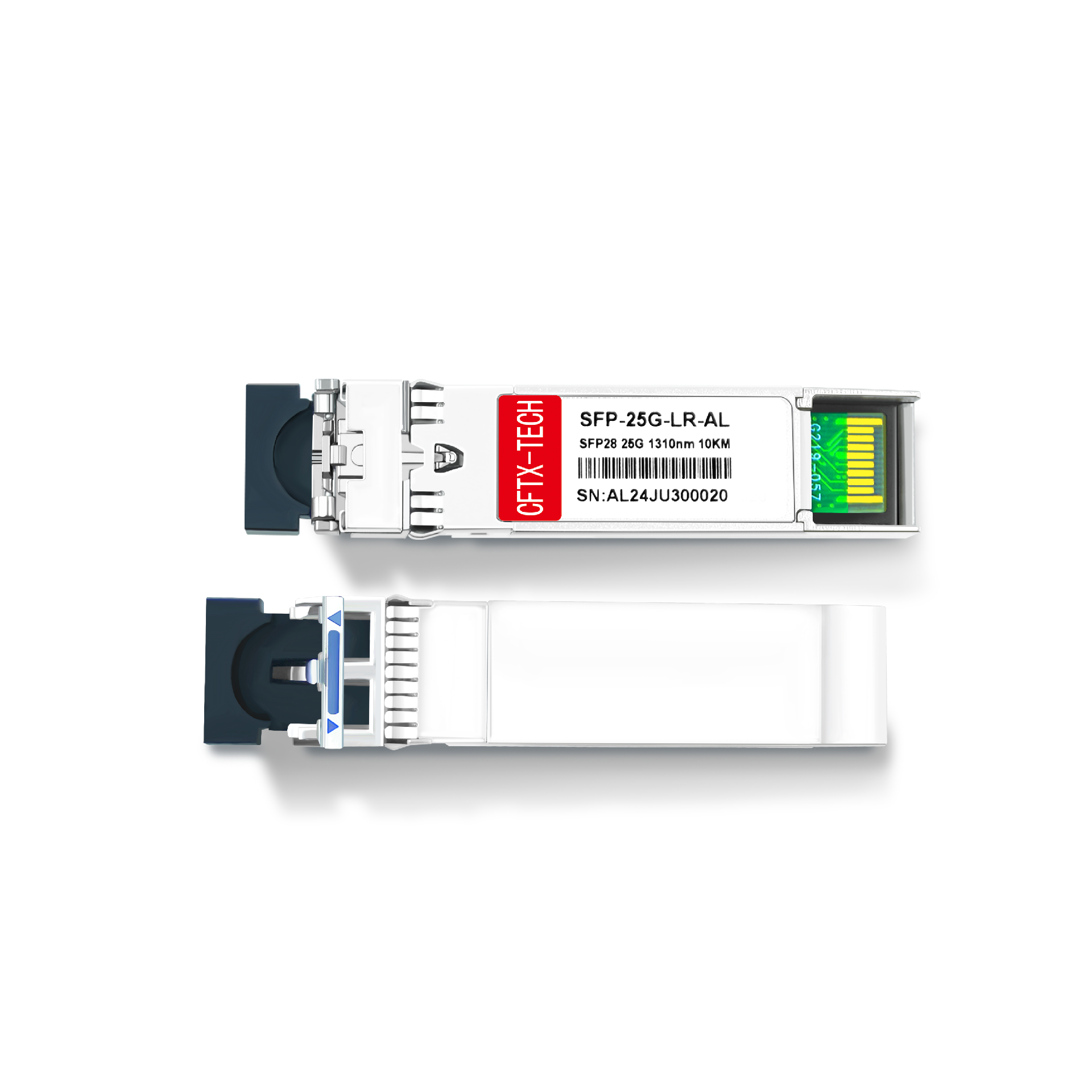

25G-SFP28-LR-1310nm-10km

25.78Gb/s data transmission speed, DFB laser transmitter and PIN photodetector, 9/125 μ m single-mode fiber transmission up to 10km, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal housing for reducing electromagnetic interference, ROSA lead-free standard, single +3.3V power supply, support digital diagnostic monitoring function, SFF-8472 protocol

产品详情
资料下载

Compatible Model Name	SFP-25G-LR	Vendor Name	CFTX
Form Factor	SFP28	Data Rate	25.78Gbps
Wavelength	1310nm	Max Transmission Distance	10km
Connector	Duplex-LC	Media	Single mode-SMF
Laser Type	DFB	Receiver	PIN
DDM/DOM	Yes	Temperature Range	0~70°C （Commercial grade） -40~85℃（Industrial grade）
Transmitter power	-2~4dBm	Receiver sensitivity	<-14dBm
Power Consumption	1W	Extinction ratio	2dB
Modulation	NRZ	CDR	Transmit and Receive
Transmission dispersion	1dB	Power Budget	12dB
Packaging Technology	TO	FEC Function	Yes
Protocols	MSA, CPRI, eCPRI	Apply	25GBASE Ethernet, Data Center, Telecom
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
