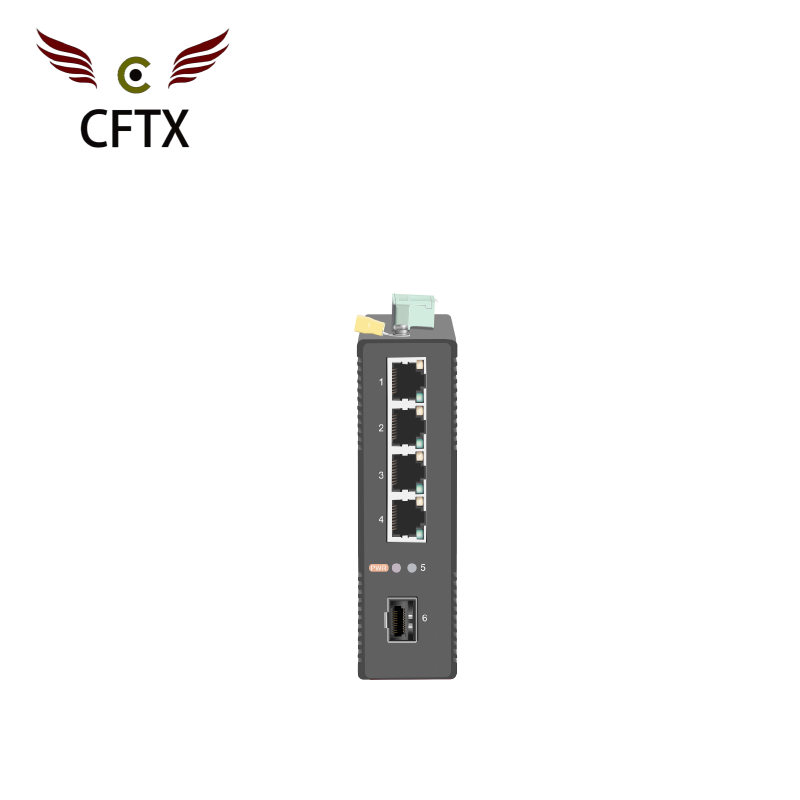

千兆 SFP 一光四电工业交换机

Downlink：4 * 10/100/1000Base-T Ethernet Ports , Supporting POEUplink：1 * 1000BASE-XDC power supply; Reverse polarity protection Forwarding performance：7.44MppsSwitch capacity：10Gbps

产品详情
资料下载

Parameters	IS1500-4GP1GS
Downlink	4 * 10/100/1000Base-T Ethernet Ports, Supporting POE
Uplink	1 * 1000Base-X
Power	Dual power redundancy
MAC address	8K
buffer(bits)	1M
Dimensions（W x D x H, mm）	135mm X 105mm X 45 mm
Weight	0.55kG
Power Protect	DC power supply; Reverse polarity protection
Input voltage	DC: 48V-54V,
POE	IEEE802.3AF; IEEE802.3AT;
EEE	Support
Power consumption	<6W（exlcude POE）
Operating environment	-40℃~+85℃
Operating environment	5% to 95% (non-condensing)
Heat dissipation	Natural heat dissipation
Installation	DIN
IP Level	IP40
Surge	IEC 61000-4-5 Level 4
EFT	IEC 61000-4-4 Level 4
ESD	IEC 61000-4-2 Level 4
