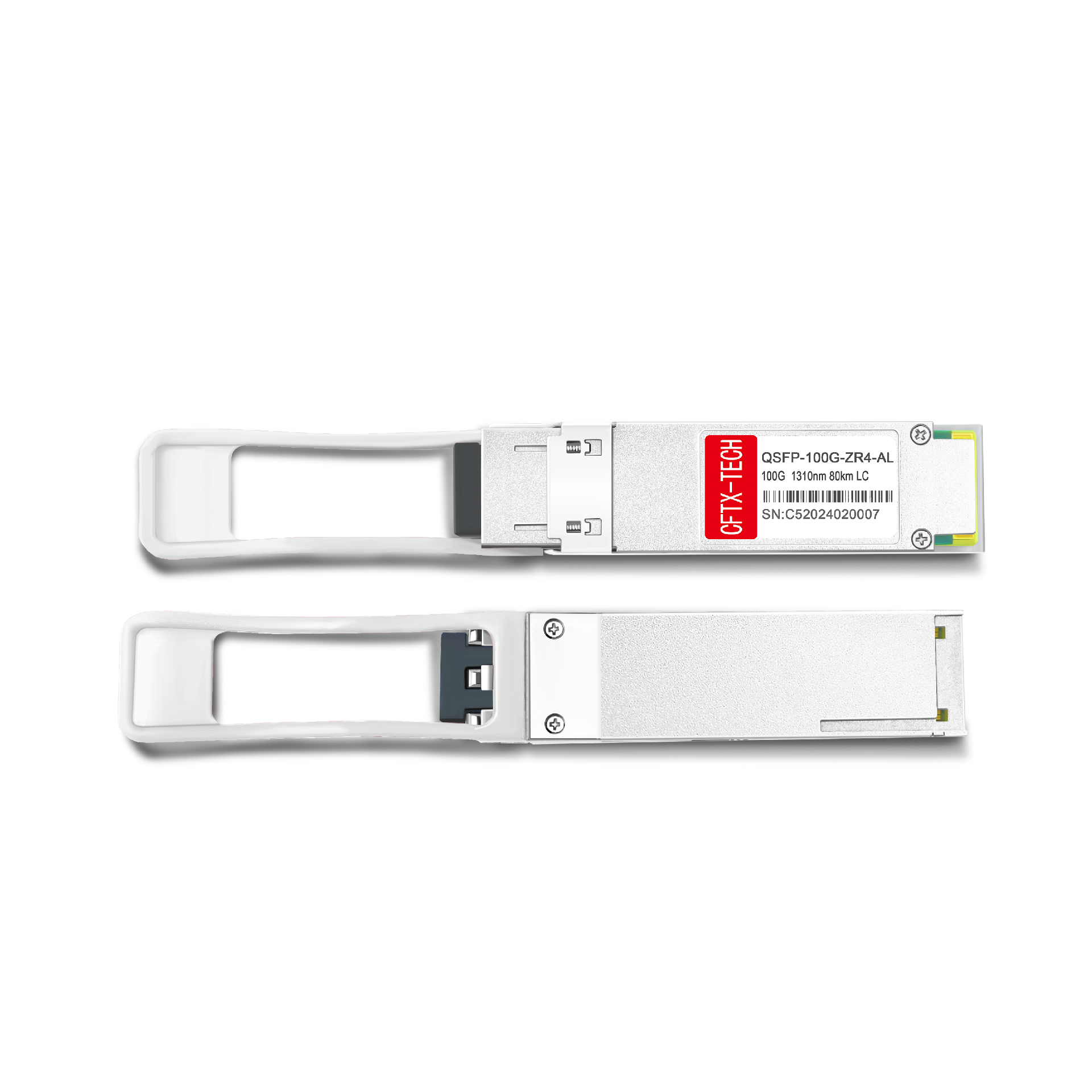

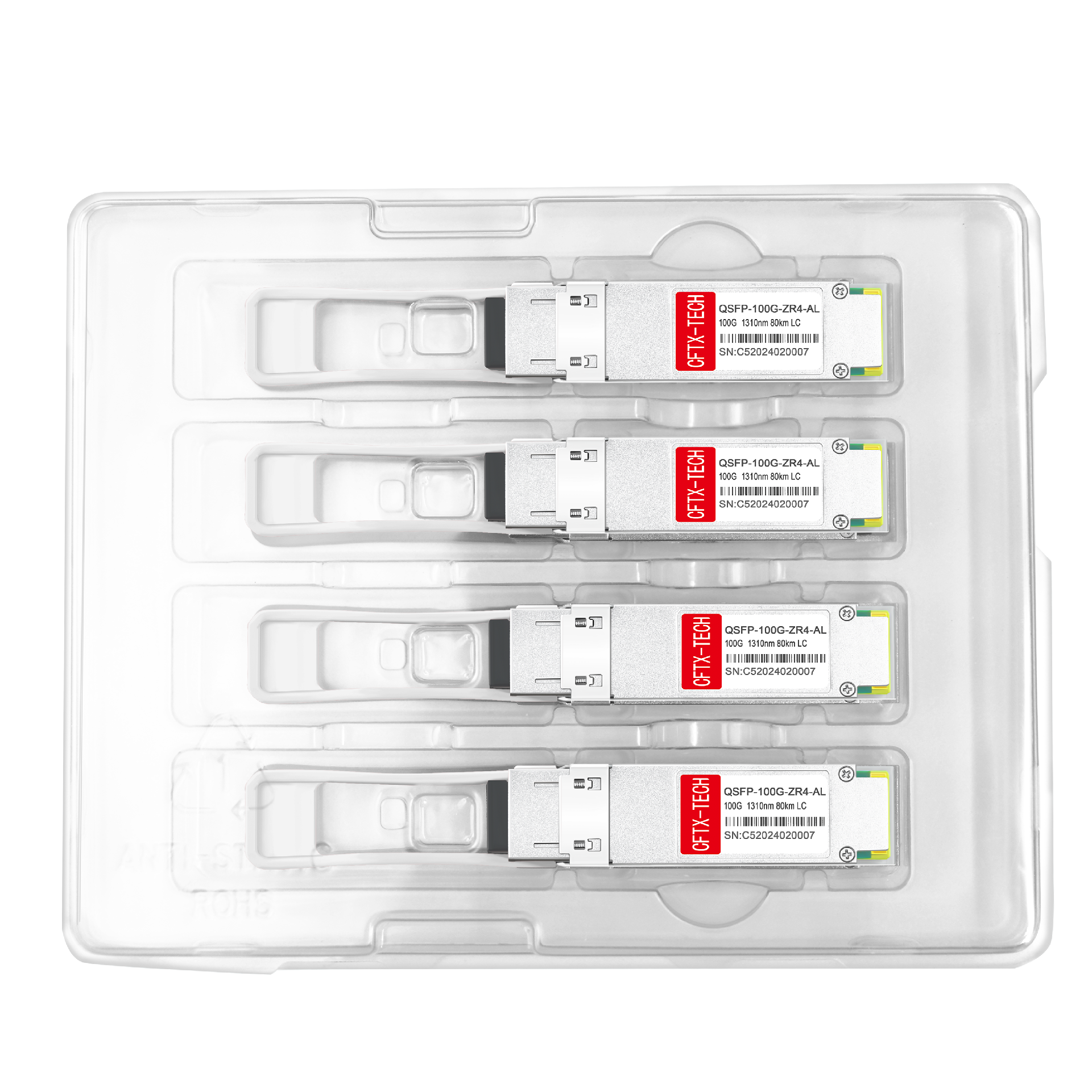

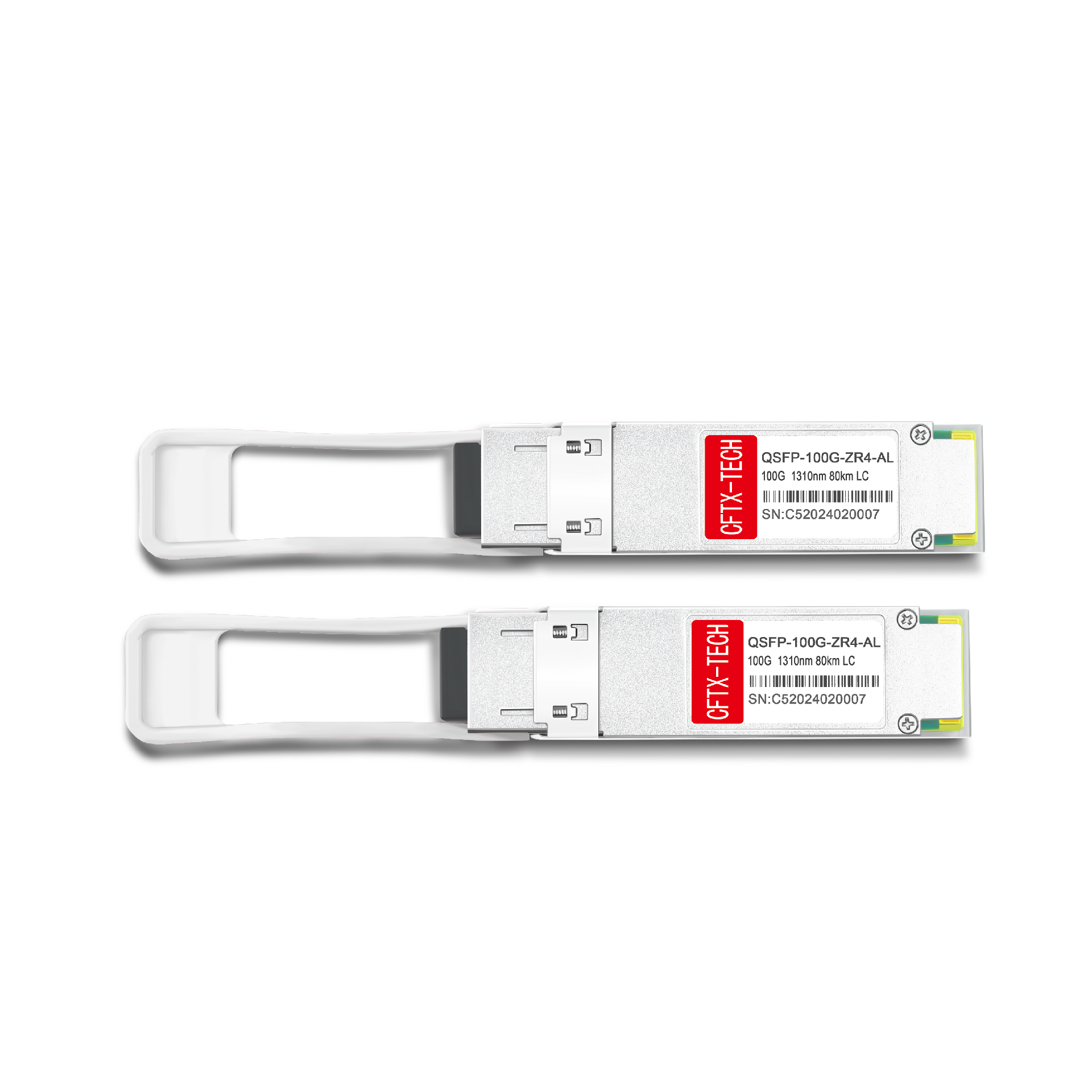

QSFP-100G-ZR4-AL
103.1Gb/s data transmission speed, using 4*25.78G LAN WDM DML laser transmitter and APD photoelectric detector, 9/125 μ m single-mode fiber transmission up to 80Km, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal shell for reducing electromagnetic interference, in line with ROSA lead-free standard, single +3.3V power supply, support digital diagnosis and monitoring function, SFF-8472 protocol
| Compatible Model Name | SFP-100G-ZR4-AL | Vendor Name | CFTX |
| Form Factor | QSFP28 | Data Rate | 103.125Gbps |
| Wavelength | 1310nm | Max Transmission Distance | 80km |
| Connector | Duplex-LC | Media | Single mode-SMF |
| Laser Type | EML | Receiver | APD |
| DDM/DOM | Yes | Temperature Range | 0~70°C （Commercial grade） 32~158℃（Industrial grade） |
| Transmitter power | 2~6.5dBm | Receiver sensitivity | <-28dBm |
| Power Consumption | ≤6W | Extinction ratio | ＞6dB |
| Modulation | NRZ | CDR | Occurrence and receiving |
| Transmission dispersion | 3.5dB | Power Budget | 31dB |
| Packaging Technology | COB(chip on board) | FEC Function | Yes |
| Protocols | 100G MSA, IEEE802.3ba,Ethernet,Infiniband,QDR,SATA/SAS3 | Apply | 100G Ethernet, Data Center |
| Compatible Brands | (Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP…… |
