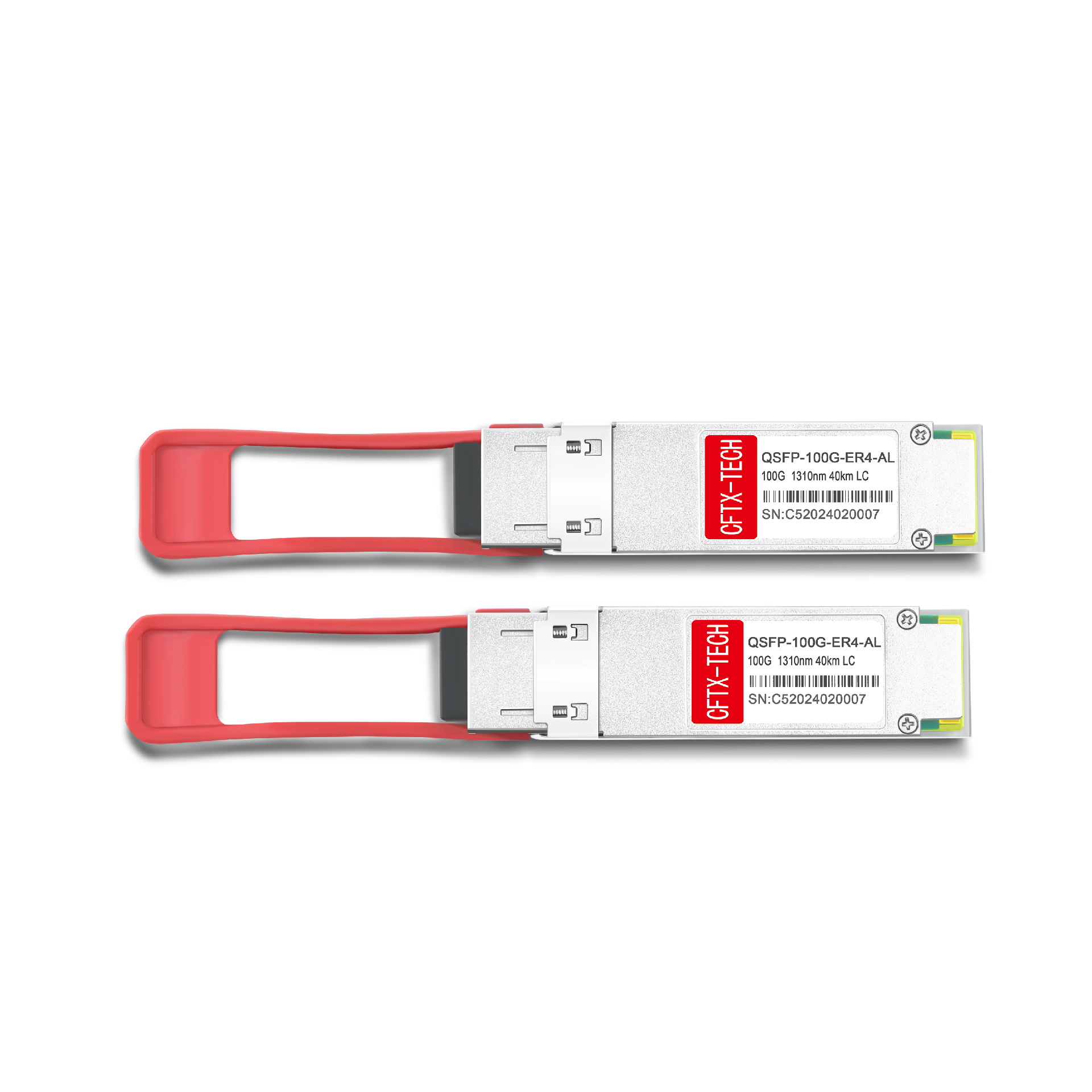

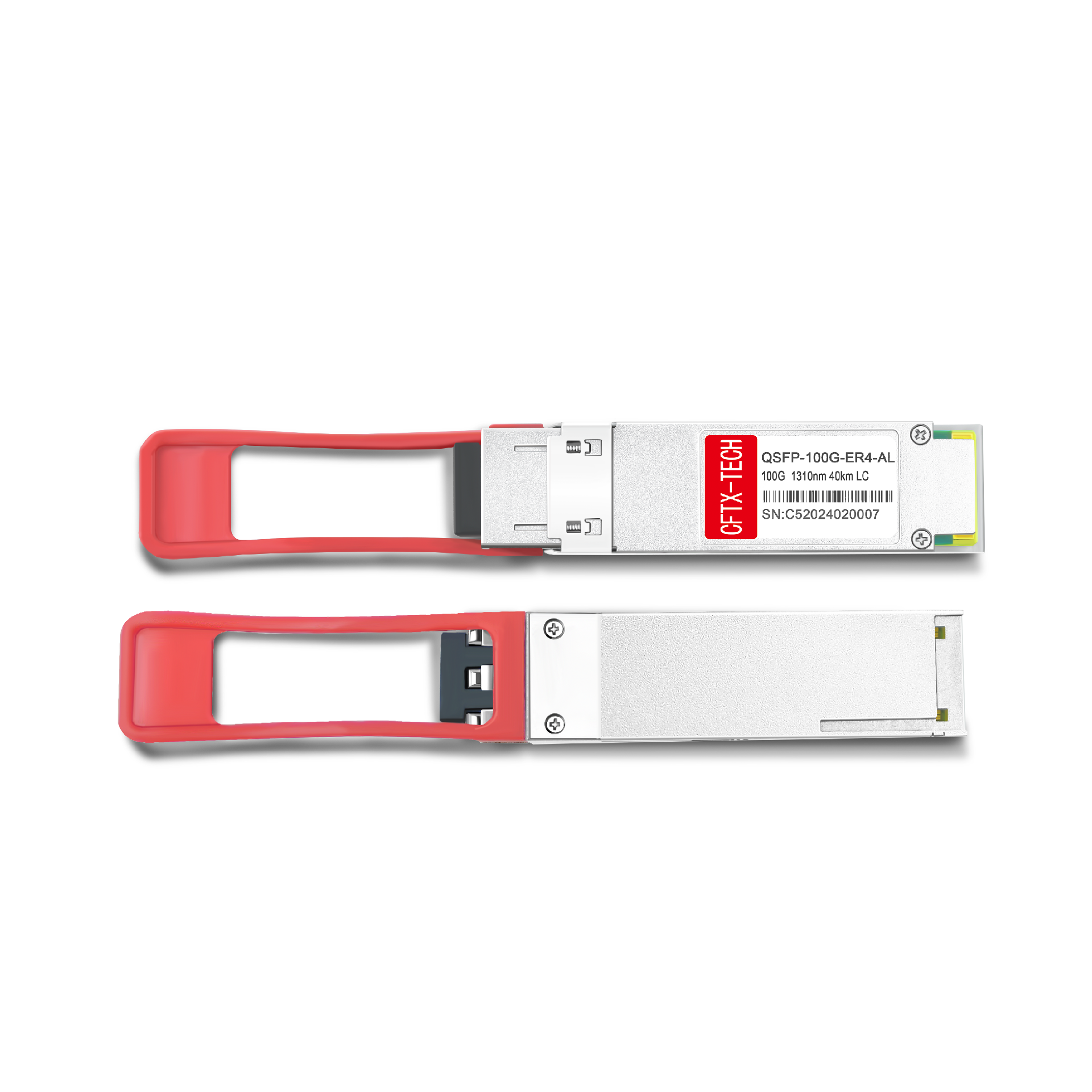

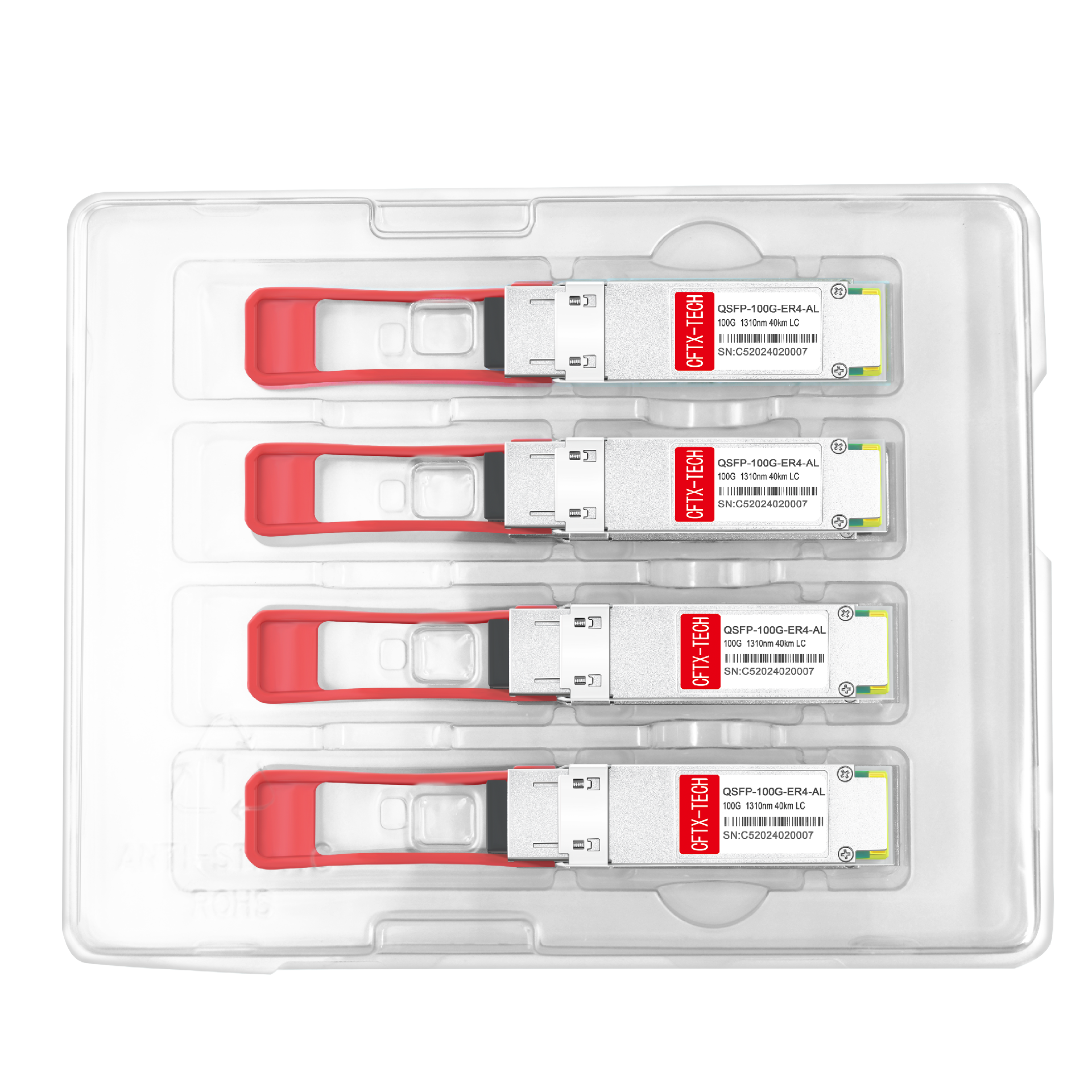

QSFP-100G-ER4-AL
Compatible Model NameSFP-100G-ER4-ALVendor NameCFTXForm FactorSFP28Data Rate103.125GbpsWavelength1310nmMax Transmission Distance100kmConnectorDuplex-LCMediaSingle mode-SMFLaser TypeDFBReceiverPINDDM/DOMYesTemperature Range0~70°C （Commercial grade）32~158℃（Industrial grade
| Compatible Model Name | SFP-100G-ER4-AL | Vendor Name | CFTX |
| Form Factor | SFP28 | Data Rate | 103.125Gbps |
| Wavelength | 1310nm | Max Transmission Distance | 100km |
| Connector | Duplex-LC | Media | Single mode-SMF |
| Laser Type | DFB | Receiver | PIN |
| DDM/DOM | Yes | Temperature Range | 0~70°C （Commercial grade） 32~158℃（Industrial grade） |
| Transmitter power | -2.7~+4.5dBm | Receiver sensitivity | <-20dBm |
| Power Consumption | 4.5W | Extinction ratio | 4dB |
| Modulation | NRZ | CDR | Occurrence and receiving |
| Transmission dispersion | 2.2dB | Power Budget | 18.5dB |
| Packaging Technology | BOX | FEC Function | Yes |
| Protocols | MSA, CPRI, eCPRI | Apply | 10GBASE Ethernet, Data Center, OTU3e1，OTU3e2 |
| Compatible Brands | (Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP…… |
