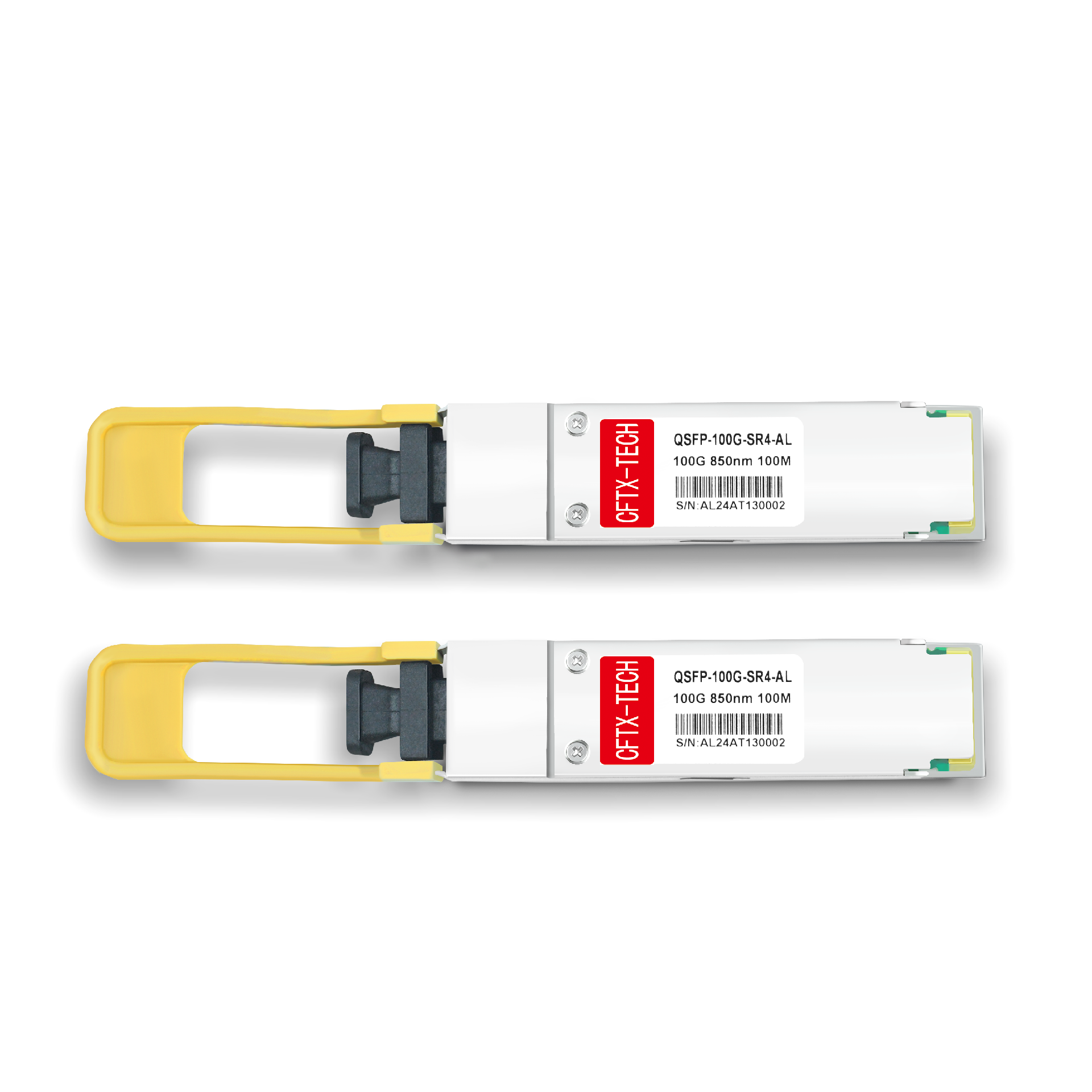

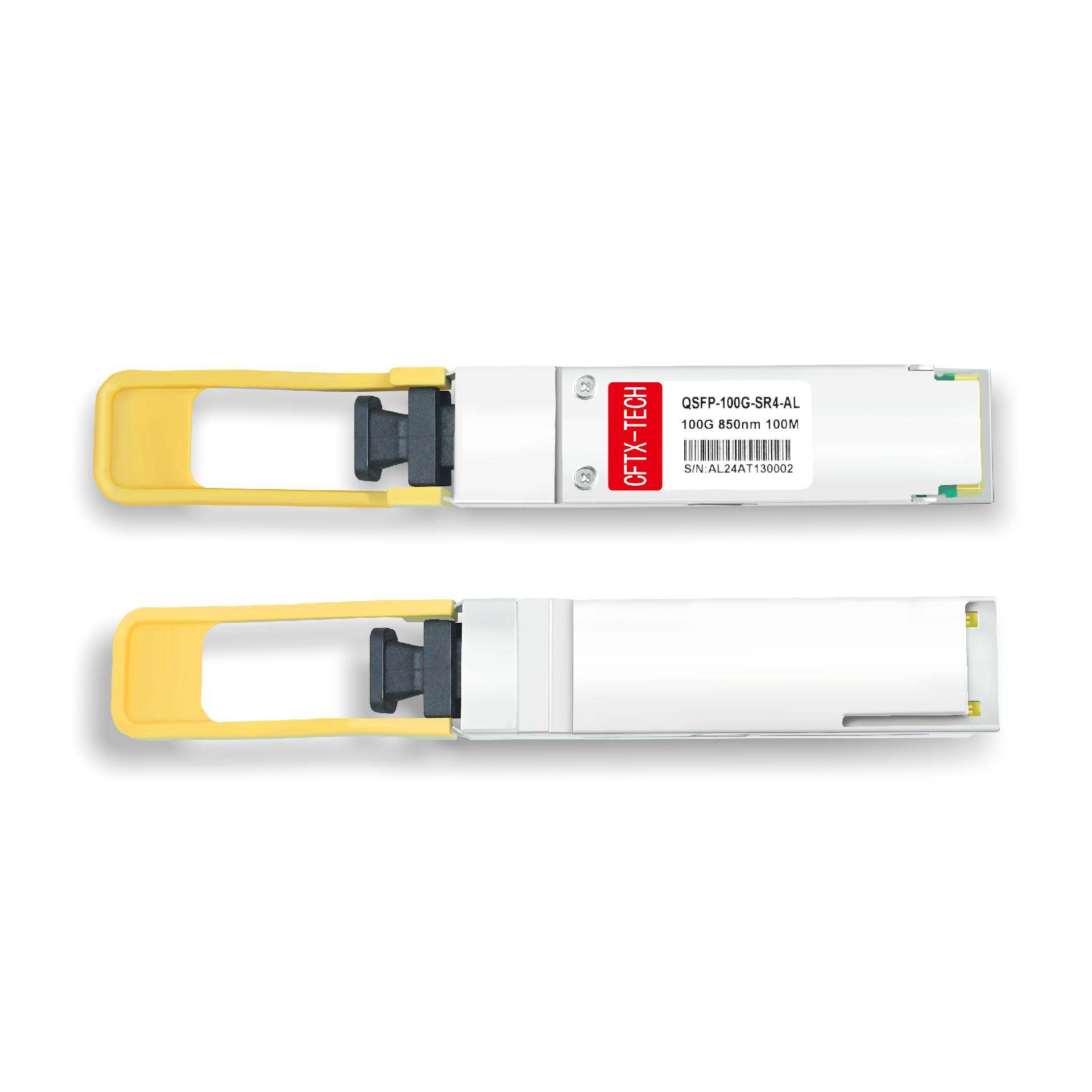

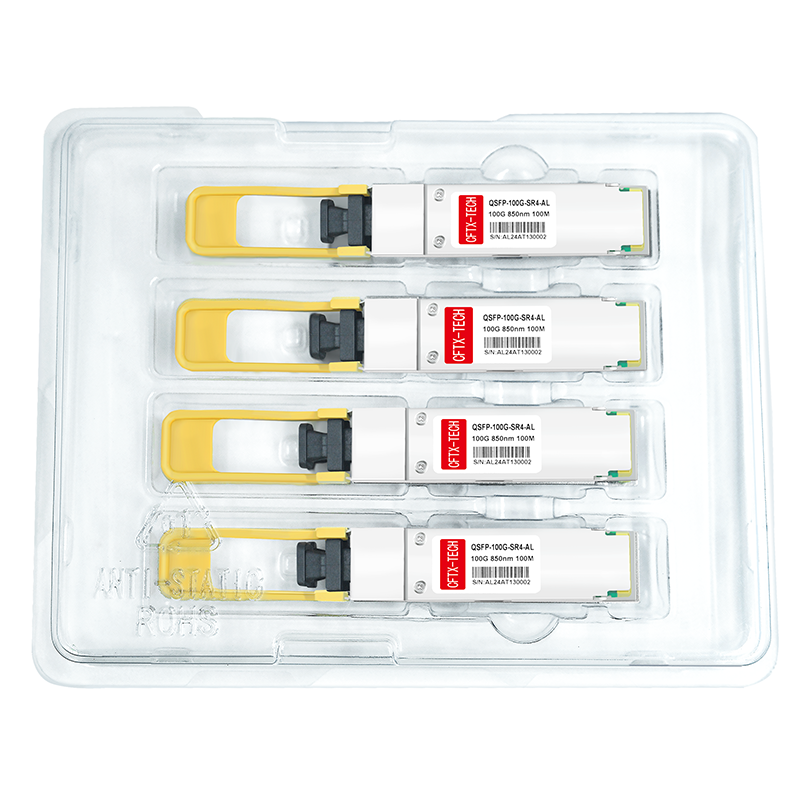

QSFP28-100G-SR4

103.1Gb/s data transmission speed, using 4*25.78G VCSEL laser transmitter and PIN photoelectric detector, OM4 multi-mode fiber transmission up to 100m, hot-swappable SFP interface, MPO/MTP pluggable optical interface, low power consumption, metal shell for reducing electromagnetic interference, in line with ROSA lead-free standard, single +3.3V power supply, support digital diagnosis and monitoring function, SFF-8472 protocol

产品详情
资料下载

Compatible Model Name	SFP-40G-SR4	Vendor Name	CFTX
Form Factor	QSFP28	Data Rate	103.1Gbps
Wavelength	850nm	Max Transmission Distance	70m OM3/100m OM4
Connector	MTP/MPO	Media	Multimode-SMF
Laser Type	VCSEL	Receiver	PIN
DDM/DOM	Yes	Temperature Range	0~70°C （Commercial grade） 32~158℃（Industrial grade）
Transmitter power	-8.4~2.4dBm	Receiver sensitivity	<-10.3dBm
Power Consumption	≤1.8W	Extinction ratio	＞3dB
Modulation	NRZ	CDR	无
Transmission dispersion	5dB	Power Budget	3.5dB
Packaging Technology	COB(chip on board)	FEC Function	Yes
Protocols	100G MSA, IEEE802.3ba,Ethernet,Infiniband,QDR,SATA/SAS3	Apply	100G Ethernet, Data Center
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
