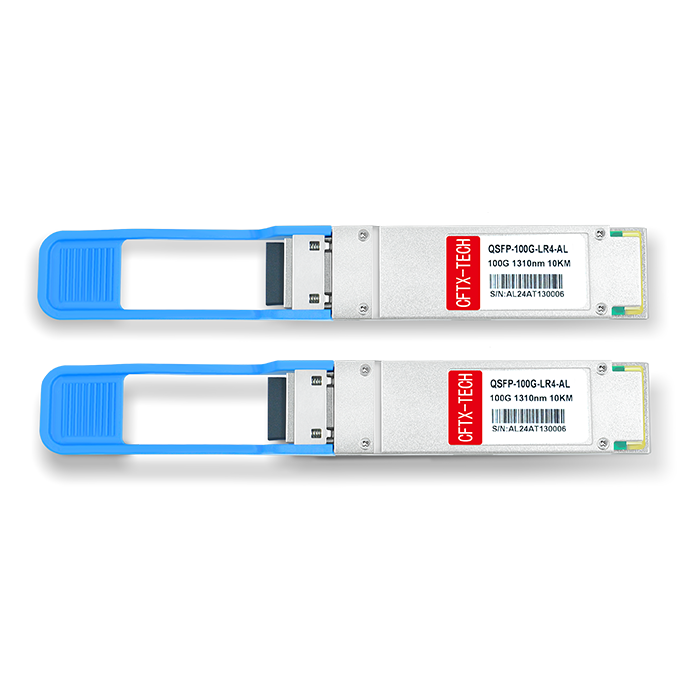

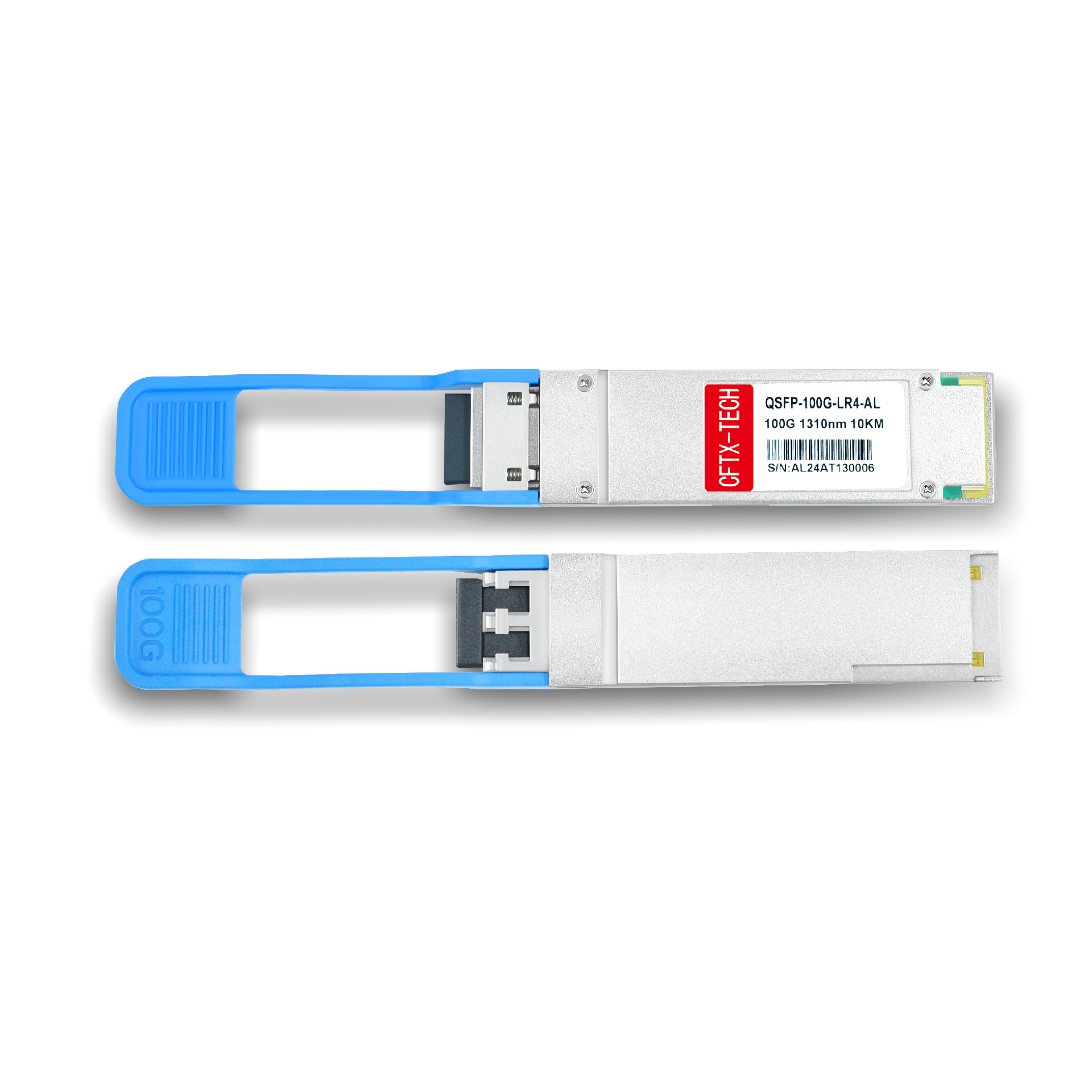

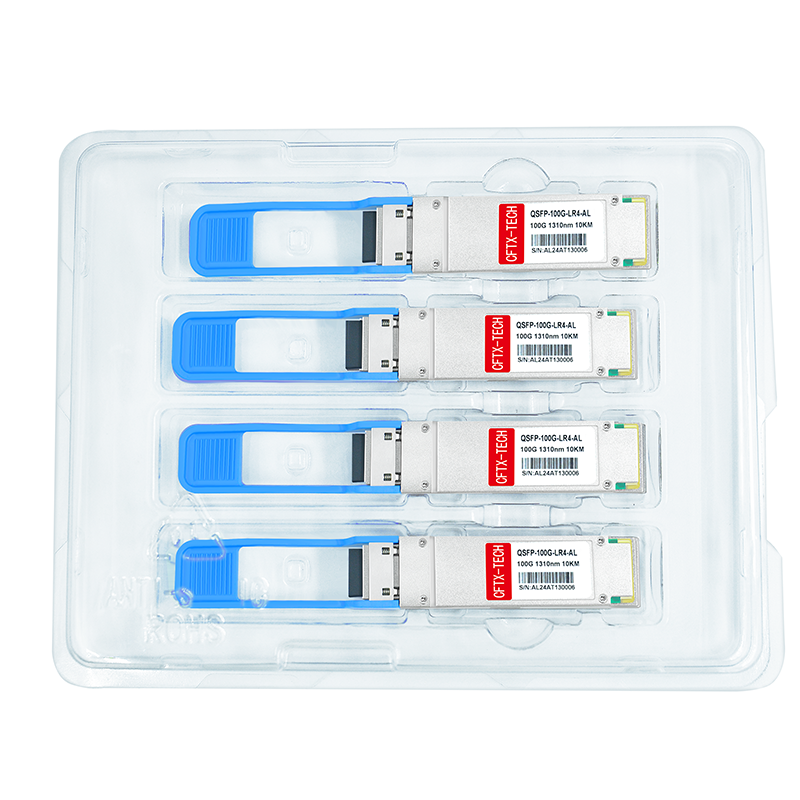

QSFP-100G-LR4-AL

103.1Gb/s data transmission speed, using 4*25.78G LAN WDM DML laser transmitter and PIN photoelectric detector, 9/125 μ m single-mode fiber transmission up to 10Km, hot-swappable SFP interface, LC/UPC pluggable optical interface, low power consumption, metal shell for reducing electromagnetic interference, in line with ROSA lead-free standard, single +3.3V power supply, support digital diagnosis and monitoring function, SFF-8472 protocol

产品详情
资料下载

Compatible Model Name	SFP-100G-LR4	Vendor Name	CFTX
Form Factor	QSFP+	Data Rate	42Gbps
Wavelength	850nm	Max Transmission Distance	150nm
Connector	Duplex-LC	Media	Single mode-SMF
Laser Type	LAN WDM DML	Receiver	PIN
DDM/DOM	Yes	Temperature Range	0~70°C （Commercial grade） 32~158℃（Industrial grade）
Transmitter power	-4.3~4.5dBm	Receiver sensitivity	<-10.6dBm
Power Consumption	3.5W	Extinction ratio	4dB
Modulation	NRZ	CDR	无
Transmission dispersion	2.2dB	Power Budget	8.5dB
Packaging Technology	COB(chip on board)	FEC Function	Yes
Protocols	100G MSA, IEEE802.3ba,Ethernet,Infiniband,QDR,SATA/SAS3	Apply	100G Ethernet, Data Center
Compatible Brands	(Cisco)、Arista 、HUAWEI、ZTE、DLL、Intel、H3C、RuiJie、IBM、HP……
